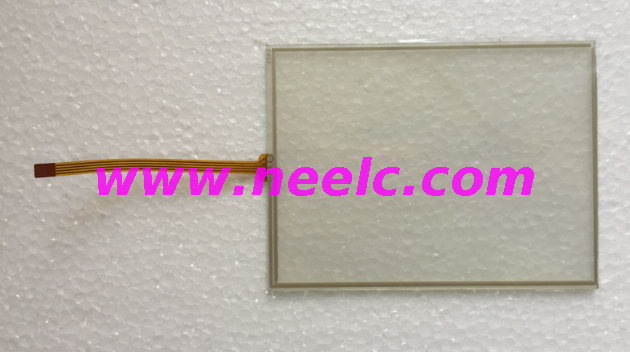

130X97 mm 4 wires New touch glass
130X97 mm 4 wires New touch glass 130X97 mm 4 wires New touch glass

loading

130X97 mm 4 wires New touch glass

5 0 Reviews
130X97 mm 4 wires New touch glass
Price: $ 44
  • 130X97 mm 4 wires

Availability:
Quantity:
min order: 1
View wholesale prices View wholesale prices
  • Quantity Price
  • 5 $-5
sign in to view wholesale price

Basic Parameters

  • Size: The touch glass has a length of 130 mm and a width of 97 mm, which is suitable for some small - to - medium - sized display devices.

  • Touch Technology: It adopts 4 - wire resistive touch technology. This technology has the characteristics of high resolution, high stability, and low cost.

Electrical Characteristics

  • Supply Voltage: Usually, it operates at a DC voltage of +5V.

  • Screen Resistance: The resistance between X1 - X2 is 200Ω - 500Ω, and the resistance between Y1 - Y2 is 200Ω - 500Ω.

  • Insulation Resistance: Greater than 20MΩ at DC 25V, which helps ensure the stability of the electrical circuit and prevent interference.

Touch Performance

  • Response Time: Less than 8 milliseconds for finger input, which can quickly recognize and process user touch actions.

  • Touch Force: 15 - 40 gf, with good touch sensitivity, being able to detect light touches.

  • Position Accuracy: The standard deviation is less than 2 mm, which can accurately locate the touch position.

Physical Properties

  • Material: Usually made of high - quality glass or a glass - like material with a conductive coating. The glass has high light transmittance, generally 75% - 85% at a wavelength of 550 nm, which ensures a clear view of the underlying display.

  • Thickness: The thickness of the touch glass is generally in the range of 1 mm - 5 mm.

Environmental Adaptability

  • Operating Temperature: It can work in the temperature range of - 20°C - 70°C.

  • Storage Temperature: The storage temperature range is - 25°C - 80°C.

  • Humidity Resistance: It can withstand a humidity of 90% RH at 40°C (non - condensing).

Nee Electron Technology Co.,LTD. is very professional touch panel company. We have Capacitor and resistance touch glass factory can accept OEM .Especial in Automation industrial device. We can do all kind of size which you need exactly.

We can open module in small quantity and fast delievery time and very reasonable price when you can’t find any kind of touch glass.

We export a lot of countries. almost got 100% good feedbacks, Because we have super good team to control our products quality at very strict. Also, we have a professional service team to service you after sold out products.

Just contact us :

Skype: chasesweet2

WeChat: chasesweet

Whatsapp/Mobile: +86 13928128361

Email: chasesweet@163.com

130X97 mm 4 wires
