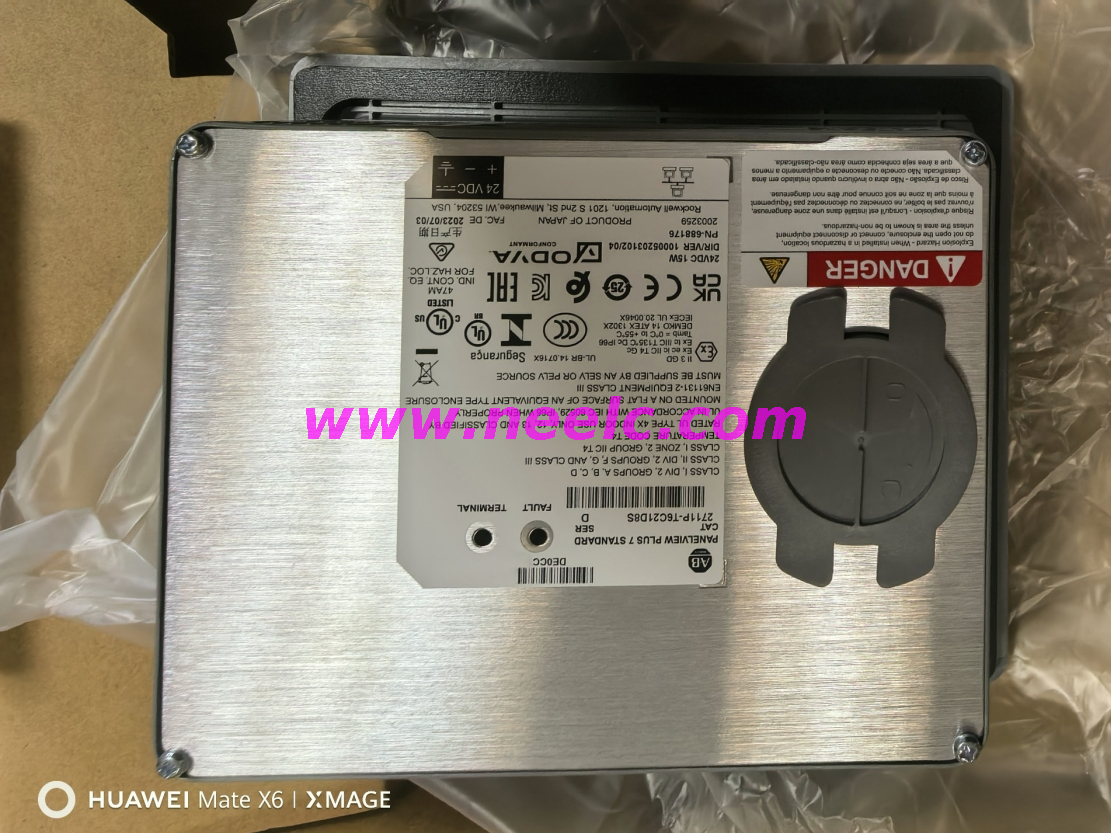

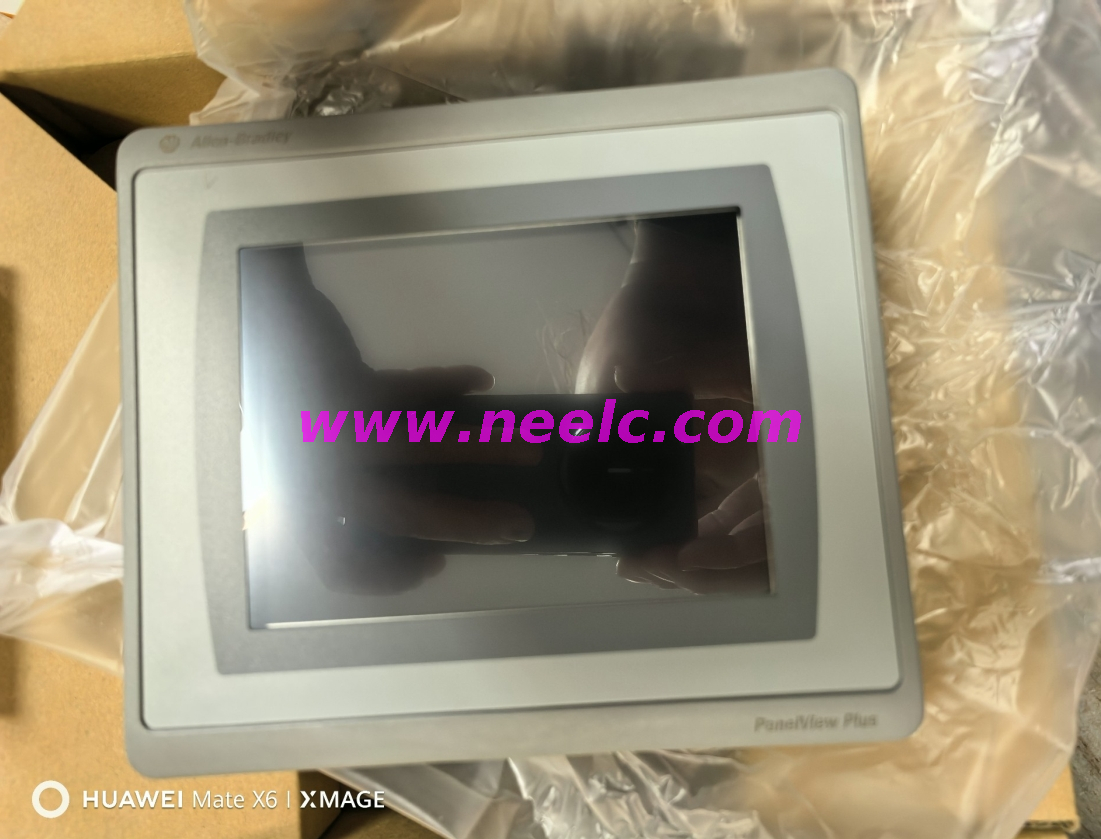

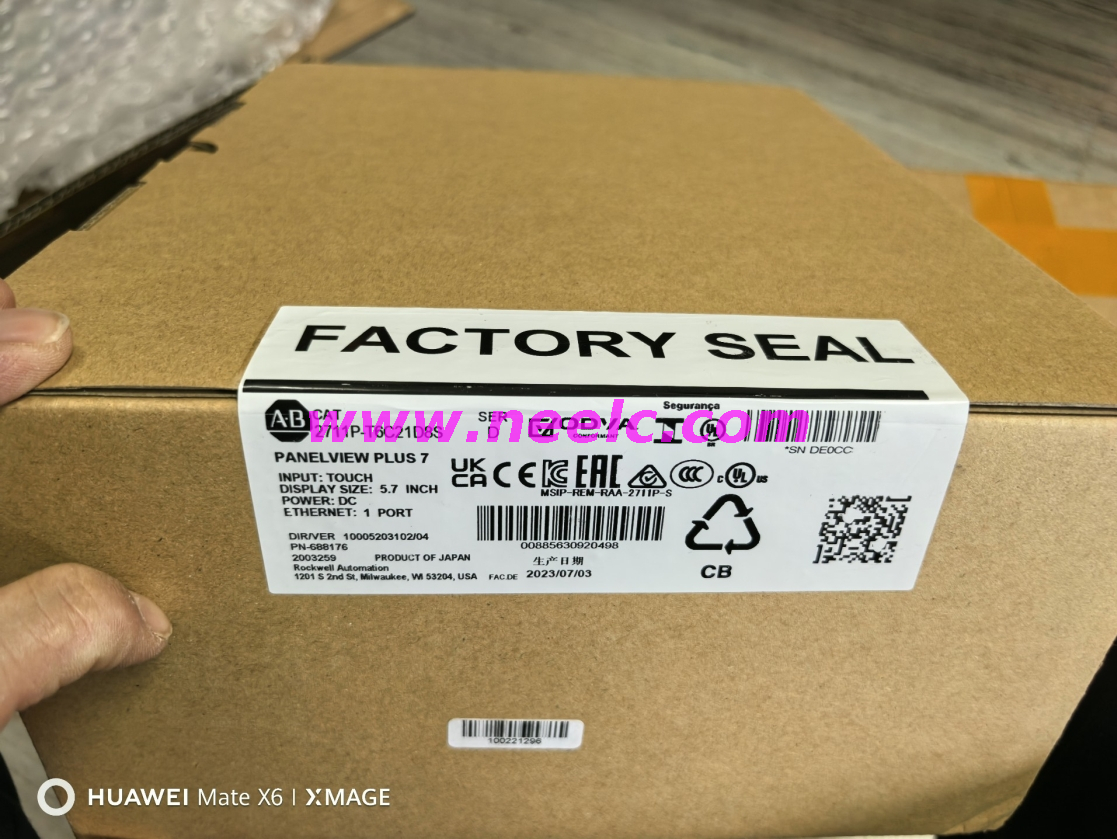

2711P-T6C20D8S New and original HMI

Nee Electron Technology Co.,LTD. is very professional touch panel company. We have Capacitor and resistance touch glass factory can accept OEM .Especial in Automation industrial device. We can do all kind of size which you need exactly.

We can open module in small quantity and fast delievery time and very reasonable price when you can’t find any kind of touch glass.
We export a lot of countries. almost got 100% good feedbacks, Because we have super good team to control our products quality at very strict. Also, we have a professional service team to service you after sold out products.
Just contact us :

Skype: chasesweet2

WeChat: chasesweet

Whatsapp/Mobile: +86 13928128361

Email: chasesweet@163.com

1. General Information

• Model：2711P-T6C20D8

• Product Series：PanelView Plus 6 600

• Life Cycle Status：Discontinued

2. Electrical Parameters

• Supply Voltage：18…30 V DC (24 V DC nominal), requires the use of a class 2 or safety extra low voltage (SELV) or protected extra-low voltage (PELV) power supply

• Power Consumption：15 W max (0.6 A at 24V DC), 9 W typical (0.375 A at 24V DC)

• Memory：512 MB RAM, 512 MB nonvolatile memory (approx. 79 MB free user memory)

3. Mechanical Parameters

• Dimensions：Width of the front 185 mm, Height of the front 152 mm, Built-in depth 68 mm

• Weight：1.18 kg

• Mounting：Wall mounting / direct mounting is possible

4. Display Parameters

• Screen Size：5.7 inch

• Resolution：320 x 240, 18-bit color graphics

• Display Type：Color active matrix, thin-film transistor (TFT)

• Brightness：440 cd/m²

• Backlight：White LED, not replaceable, 25,000 hours minimum at 25 °C (77 °F)

5. Touch Screen Parameters

• Touch Technology：Analog resistive, 4-wire

• Actuation：1 million presses

• Operating Force：10…110 g

6. Communication Parameters

• Ethernet：10/100 Mbps, auto-MDI/MDI-X

• RS-232：1 port

• USB：One USB host port and one USB device port

7. Software Parameters

• Operating System：Windows CE 6.0 operating system with extended features/file viewers

• FactoryTalk Software：FactoryTalk View Machine Edition software, version 6.10 or later
