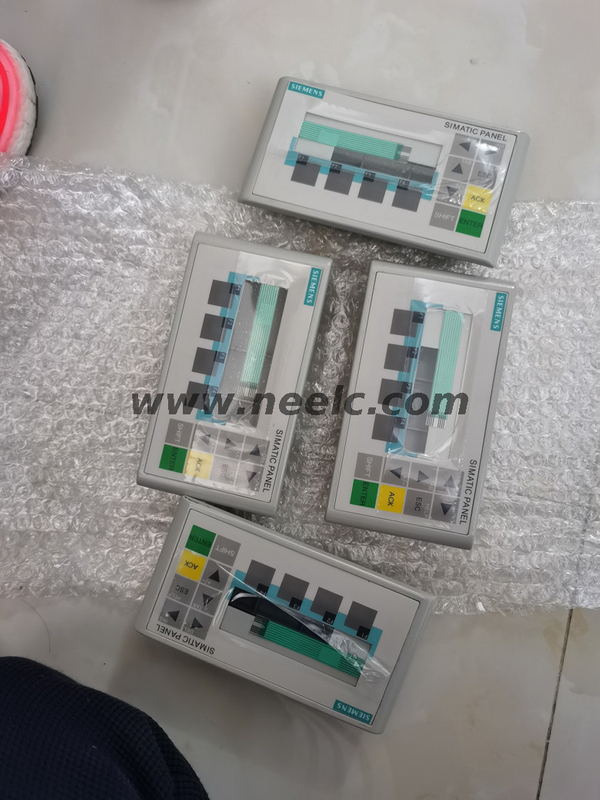

6AV6640-0BA11-0AX0 OP73 + Membrane Keypad New

General Information

• Model: 6AV6640 - 0BA11 - 0AX0

• Product Name: SIMATIC OP73 Micro operator panel

Display Characteristics

• Display Type: STN LCD

• Display Size: 3 inches

• Resolution: 160 x 48 pixels

• Color: Monochrome (black/white)

• Backlight MTBF: 100,000 hours at 25 °C

Keypad Features

• Keypad Type: Membrane keypad

• Function Keys: 4 freely configurable function keys, 8 system keys

• Numeric and Alphanumeric Input: Supported

• Hexadecimal Keyboard: Available

• Multi - key Operation: Allowed

Electrical Parameters

• Power Supply: DC 5V, 1mA

Dimensions

• Front Width: 154 mm

• Front Height: 84 mm

• Installation Width: 138 mm

• Installation Height: 68 mm

• Installation Depth: 28.5 mm

Weight

• Approximate Weight: 0.25 kg

Environmental Conditions

• Operating Temperature: - 10 °C to + 80 °C

• Storage Temperature: - 20 °C to + 70 °C

Communication

• Communication Interface: Integrated interface for MPI or PROFIBUS DP, enabling connection to SIMATIC S7 - 200 CPUs via standard MPI bus cables or PROFIBUS DP cables.

Configuration Software

• Required Software: SIMATIC WinCC flexible micro, compact, standard or advanced engineering software version 2004 SP1 and higher plus HSP.
