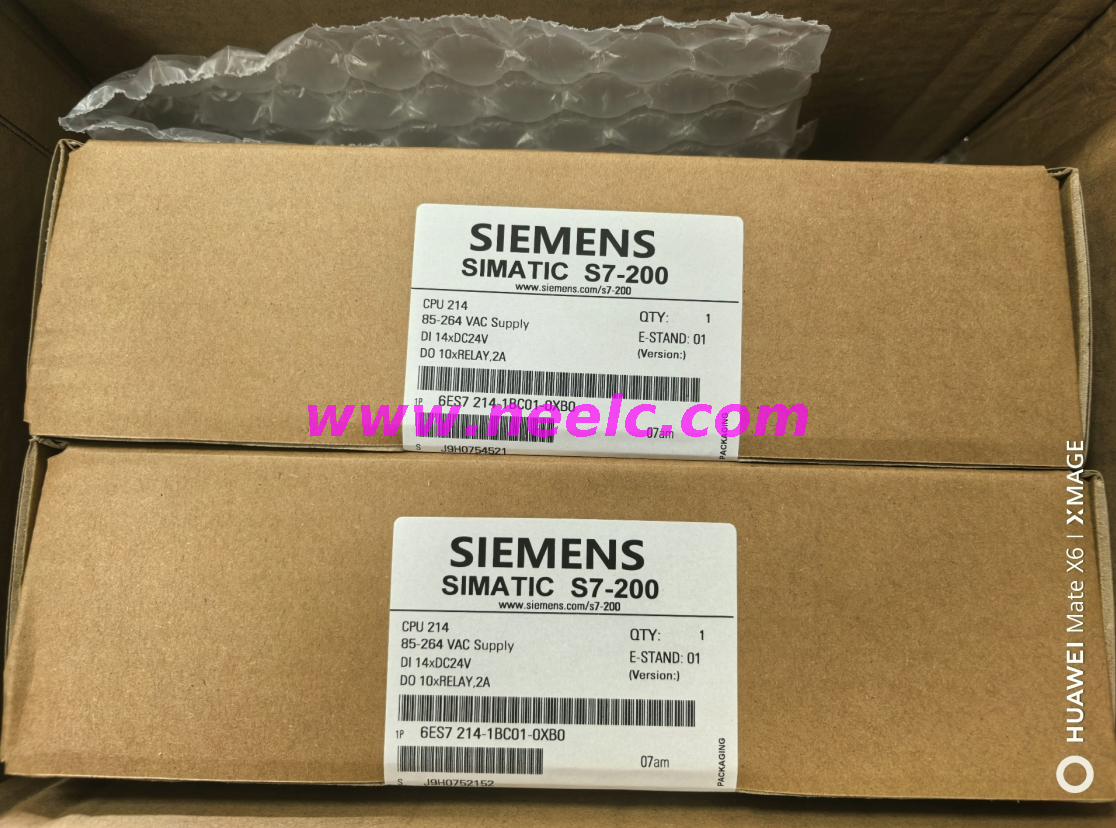

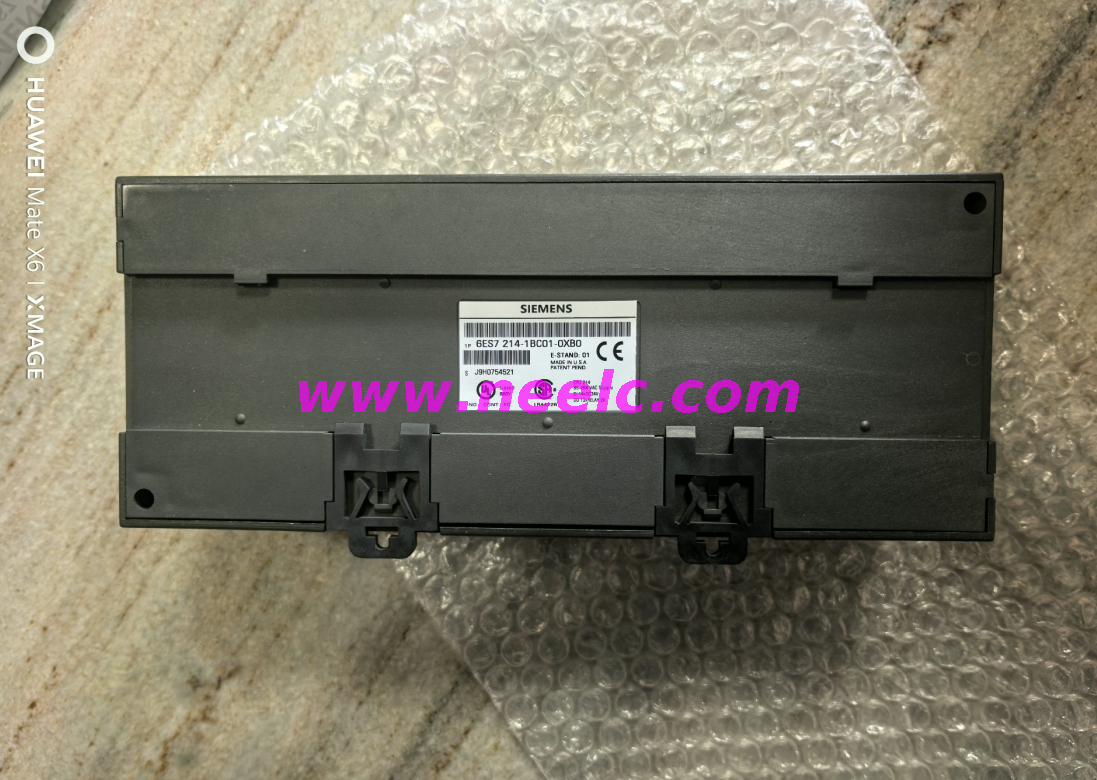

6ES7214-1BC01-0XB0 6ES7 214-1BC01-0XB0 New and original Module

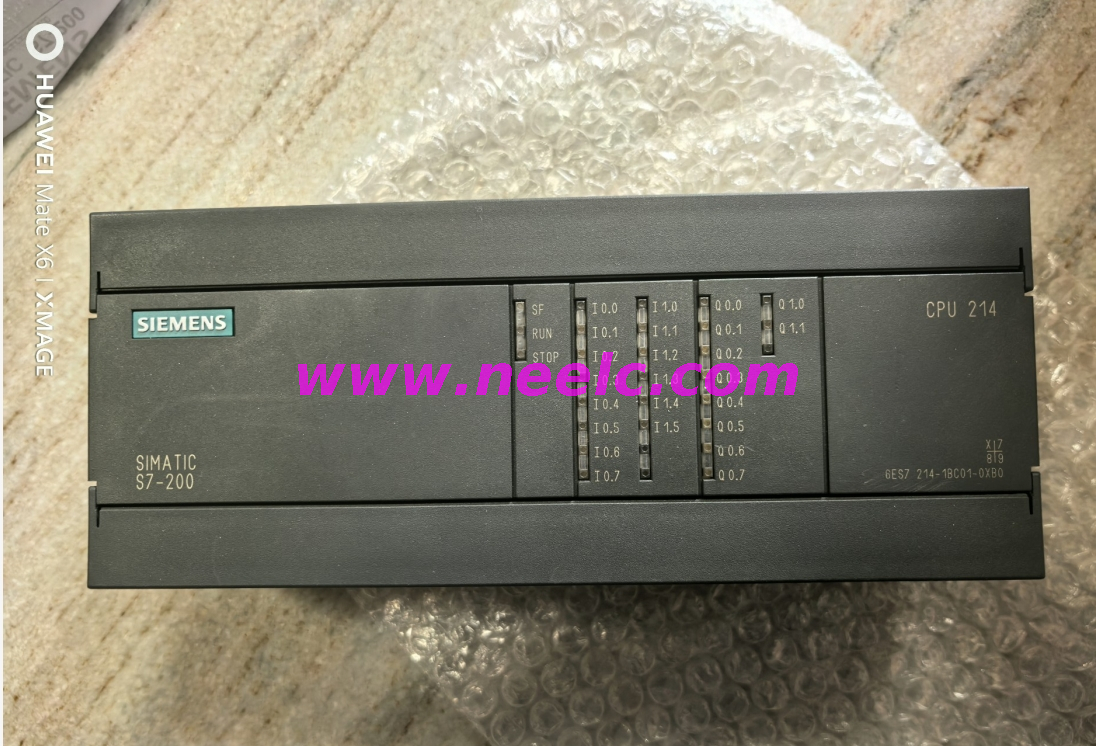

Model: Simatic S7 - 200 CPU 214

Product Status: Discontinued by Siemens on 10.01.2013

EAN: 4025515160113

Net Weight: 0.59 kg

Dimensions: 10.1 cm x 22.3 cm x 7.0 cm

Country of Origin: United States

Output Voltage Type : DC

Rated Value : 24 V (allowable range: 15.4 - 28.8 V)

Short - Circuit Protection : Yes, electronic, at 280 mA

Output Current, Maximum Value : 280 mA

Maximum Value : 700 mA (for extended components, the output current (DC 5 V) is 660 mA)

Rated Value (DC) : 24 V

Allowable Range, Lower Limit (DC) : 20.4 V

Allowable Range, Upper Limit (DC) : 28.8 V

Power Supply Voltage3

Input Current from Power Supply Voltage L+3

24 V Sensor Power Supply3

Number of Digital Outputs : 107

Output Type : Relay

Number of Digital Inputs : 147

Input Voltage Type : DC1

Rated Value (DC) : 24 V1

Input Current for "1", Typical Value : 7 mA1

Digital Inputs

Digital Outputs
