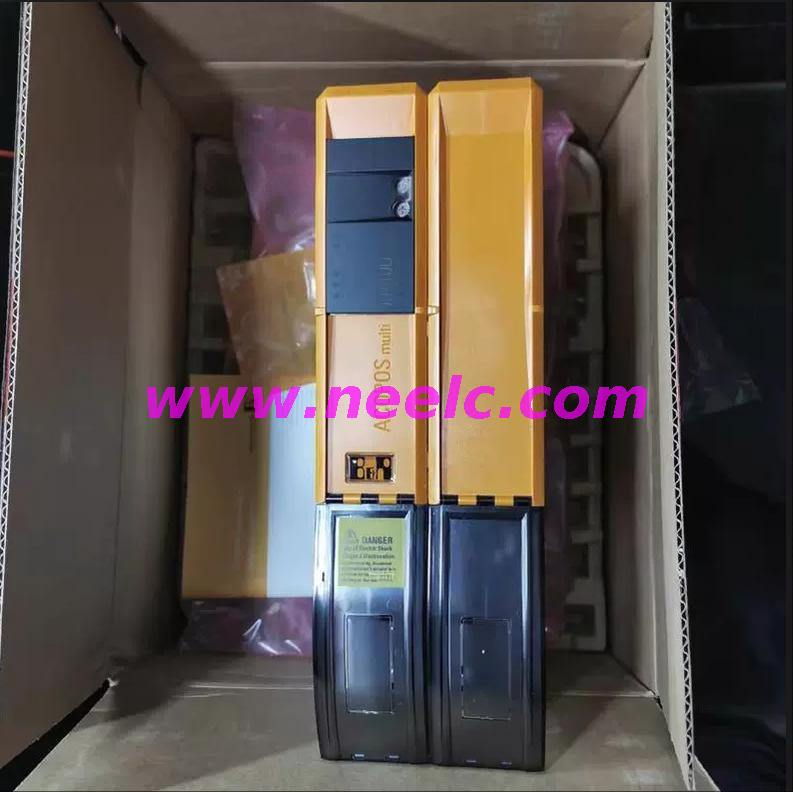

General Information
ID Code：0x270E
Dynamic Node Allocation (DNA)：Yes
Cooling and Mounting Type：Wall mounting
Slots for Plug - in Modules：2

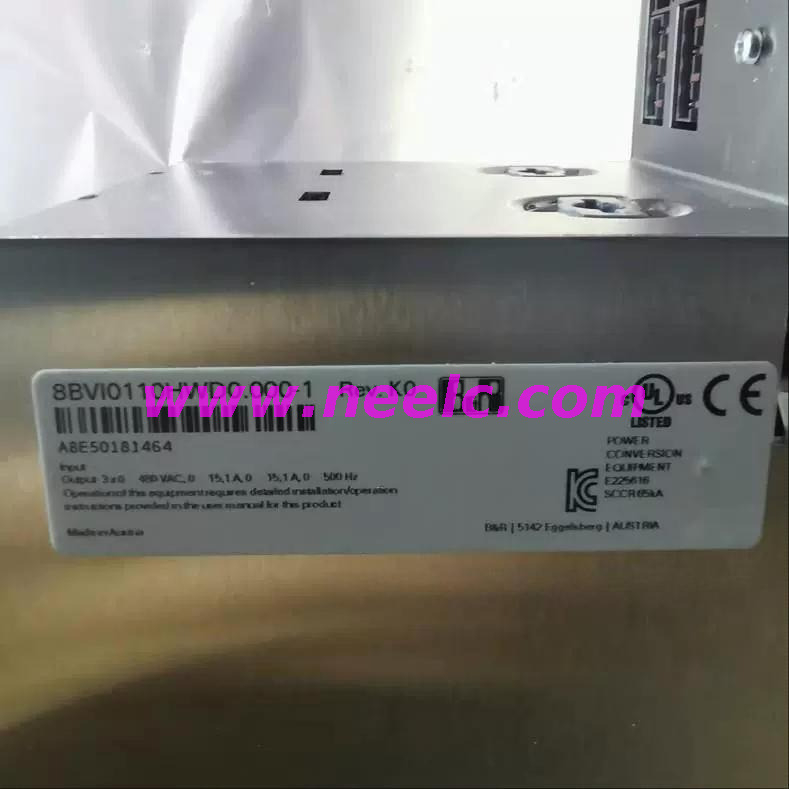

Certifications：CE, UKCA, Functional safety, UL CULus E225616, KC
Power Conversion Equipment
DC Bus Connection - Voltage：Nominal 750 VDC
Continuous Power Consumption：11.2 kW
DC Bus Capacitance：330 µF
24 VDC Power Supply
Input Voltage：25 VDC ± 1.6%
Input Capacitance：23.5 µF
Max. Power Consumption：12 W + P_slot1 + P_slot2 + P_24V_out + P_holding_brake
24 VDC Output
Quantity：2
Output Voltage：DC bus voltage (U_dc) : 260 to 315 VDC, 25 VDC * (U_dc / 315); DC bus voltage (U_dc) : 315 to 800 VDC, 24 VDC ± 6%
Fuse Protection：250 mA (slow - blow) electronic, automatic reset
Motor Connection
Quantity：1
Continuous Power per Motor Connection：11 kW
Continuous Current per Motor Connection：15.1 A eff
Peak Current：37.7 A eff
Nominal Switching Frequency：5 kHz
Possible Switching Frequencies：5 / 10 / 20 kHz
Motor Holding Brake Connection
Quantity：1
Output Voltage：24 VDC + 5.8% / - 0%
Continuous Current per Connection：2.1 A
Max. Internal Resistance：0.3 ω
Enable Inputs
Quantity：2
Circuit Sink：Yes
Electrical Isolation：Input - inverter module yes, input - input yes
Input Voltage：Nominal 24 VDC, maximum 30 VDC
Trigger Inputs
Quantity：2
Circuit Sink：Yes
Electrical Isolation：Input - inverter module yes, input - input yes
Input Voltage：Nominal 24 VDC, maximum 30 VDC
Temperature Sensor Connection
Quantity：1
Resistance Range：500 ω to 5 k ω
Electrical Properties - Discharge Capacitance：0.14 µF
Energy Efficiency (IE Classification)：Power dissipation relative to continuous apparent power ie2 (10, 25) 1.4%, ie2 (50, 25) 1.4%, etc.
Operating Conditions
Permissible Mounting Orientations：Hanging vertically yes, horizontal, face up yes, standing horizontally no
Installation Elevation Above Sea Level：Nominal 0 to 500 m, maximum 4000 m
Pollution Degree per EN 61800 - 5 - 1：2 (non - conductive pollution)
Overvoltage Category per EN 61800 - 5 - 1：III
Degree of Protection per EN 60529：IP20
Ambient Conditions - Temperature：Operation: nominal 5 to 40 °C, maximum 55 °C; Storage: - 25 to 55 °C; Transport: - 25 to 70 °C
Relative Humidity：Operation 5 to 85%, storage 5 to 95%, transport max. 95% at 40 °C
Mechanical Properties
Dimensions - Width：53 mm
Height：317 mm
Depth - Wall Mounting：263 mm
Weight：Approx. 2.9 kg
