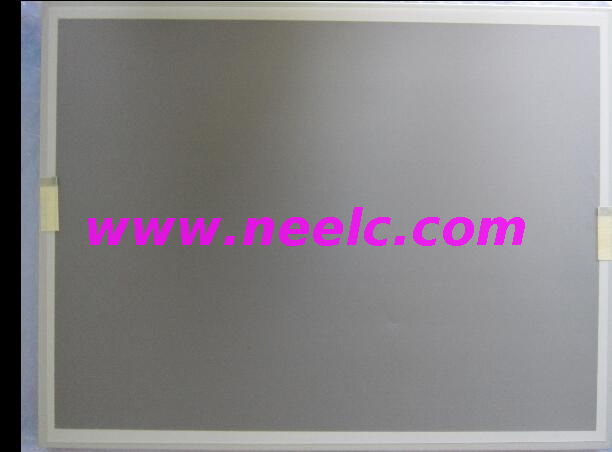

AC150XP01 LCD Panel AC150XP01 LCD Panel

loading

AC150XP01 LCD Panel

5 0 Reviews
AC150XP01 LCD Panel
Price: $ 157
  • AC150XP01 LCD Panel

Availability:
Quantity:
min order: 1
View wholesale prices View wholesale prices
  • Quantity Price
  • 5 $-5
sign in to view wholesale price

AC150XP01 New & Original LCD Panel Specifications

Product Overview

  • Model: AC150XP01 (Genuine OEM Replacement)

  • Type: TFT-LCD Module

  • Technology: a-Si TFT Active Matrix

  • Backlight: CCFL/LED (Model Dependent)

  • Condition: 100% New & Original


Technical Specifications

1. Display Characteristics

  • Screen Size: 15.0-inch (4:3 Aspect Ratio)

  • Resolution: 1024 × 768 (XGA)

  • Active Area: 304.1mm × 228.1mm

  • Pixel Pitch: 0.297mm × 0.297mm

  • Brightness: 300 cd/m² (Typical)

  • Contrast Ratio: 500:1 (Min.)

  • Viewing Angle: 140° (H) / 130° (V)

  • Color Depth: 262K (6-bit + FRC)

2. Electrical Specifications

  • Interface: LVDS (Single-Channel, 18/24-bit)

  • Operating Voltage: 3.3V (Logic) / 5V (Backlight)

  • Power Consumption: ≤7W (Typical)

  • Connector: 30-Pin FPC (0.5mm Pitch)

3. Mechanical Specifications

  • Module Dimensions: 336mm × 252mm × 12.5mm

  • Weight: ~850g

  • Mounting: 4x M4 Screw Holes

  • Bezel Material: Metal Frame (EMI Shielded)

4. Environmental & Reliability

  • Operating Temperature: 0°C to +50°C

  • Storage Temperature: -20°C to +60°C

  • Humidity Resistance: 80% RH (Non-Condensing)

  • MTBF: 50,000 Hours (at 25°C)

5. Compatibility

  • Used In:

    • Industrial HMIs

    • Medical Equipment

    • Test & Measurement Devices

    • Control Panels

Nee Electron Technology Co.,LTD. is very professional touch panel company. We have Capacitor and resistance touch glass factory can accept OEM .Especial in Automation industrial device. We can do all kind of size which you need exactly.

We can open module in small quantity and fast delievery time and very reasonable price when you can’t find any kind of touch glass.

We export a lot of countries. almost got 100% good feedbacks, Because we have super good team to control our products quality at very strict. Also, we have a professional service team to service you after sold out products.

Just contact us :

Skype: chasesweet2

WeChat: chasesweet

Whatsapp/Mobile: +86 13928128361

Email: chasesweet@163.com

AC150XP01 LCD Panel
