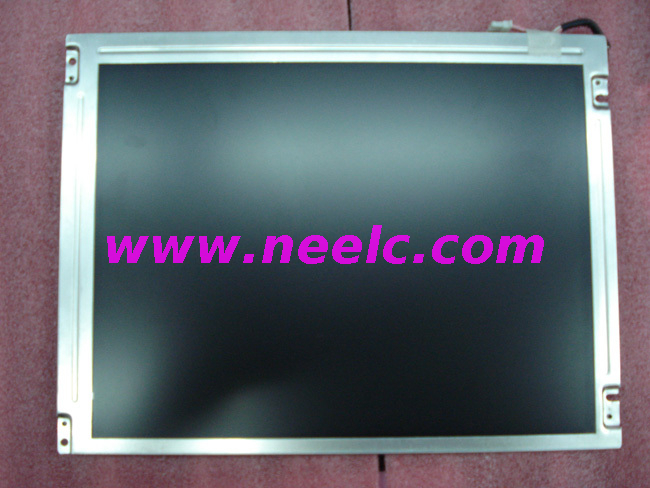

B104NS02 LCD Panel

Technical Specifications

1. Resolution:

• It commonly features an XGA (Extended Graphics Array) resolution of 1024×768 pixels. This resolution provides a good balance for displaying a variety of content, from text in industrial control interfaces to basic graphics and images in portable devices. It allows for clear and legible text and can show detailed graphics within the constraints of the panel size.

2. Display Technology:

• Employing Thin Film Transistor (TFT) LCD technology, the B104NS02 offers advantages such as high contrast ratios, wide viewing angles compared to older LCD technologies, and relatively fast response times. TFT technology enables more precise control over each pixel, resulting in better image quality and color reproduction.

3. Brightness and Contrast:

• The panel typically has a brightness level in the range of 300 to 400 nits. This brightness is sufficient for indoor use in most environments, ensuring that the display is clearly visible under normal lighting conditions. The contrast ratio is often around 400:1 to 800:1, which helps in distinguishing between different shades and colors, making the images more vivid and the text more readable.

4. Color Gamut:

• It can display a wide range of colors, covering a significant portion of the sRGB color space. This allows for accurate color representation, which is important for applications where color accuracy matters, such as in medical imaging or graphic design (at a basic level for this panel size).

5. Viewing Angle:

• Horizontally, the viewing angle is usually around 160 degrees or more, and vertically, it can be around 140 degrees or so. This wide viewing angle ensures that the display can be seen clearly from different positions, which is beneficial in applications where multiple people may need to view the screen or when the device is used in various orientations.

Physical Attributes

1. Size:

• With a diagonal measurement of 10.4 inches, it is a relatively compact display, making it suitable for portable devices or applications where space is limited. The active display area dimensions are designed to fit standard enclosures and mounting brackets for its intended use cases.

2. Thickness and Weight:

• Being an LCD panel, it is relatively thin and lightweight compared to older CRT displays. This makes it easier to integrate into devices such as industrial control panels, medical monitors, or portable computers without adding excessive bulk or weight.

Applications

1. Industrial Control:

• In industrial automation systems, the B104NS02 can be used to display process parameters, control interfaces, and status information. Its durability and reliable performance make it suitable for use in harsh industrial environments. Operators can use the panel to monitor and control machinery, adjust settings, and receive real-time feedback on the production process.

2. Medical Equipment:

• Some medical devices, like patient monitors, ultrasound machines, or portable diagnostic tools, may incorporate this panel. The clear display and accurate color reproduction are important for medical professionals to view patient data and images accurately. Its compact size also makes it suitable for use in devices that need to be mobile or easily transported within a medical facility.

3. Portable Computers and Tablets:

• Although not as common in modern high-end tablets, the B104NS02 may be used in some budget or specialized portable computing devices. It can provide a decent display for basic tasks such as web browsing, document editing, and multimedia consumption. The relatively low power consumption of the panel is also an advantage for battery-powered devices.

4. Kiosks and Information Displays:

• In public places like airports, train stations, or shopping malls, kiosks may use this panel to display information to users. Its wide viewing angle and clear display make it easy for people to access and read the information presented, whether it's maps, schedules, or product details.
