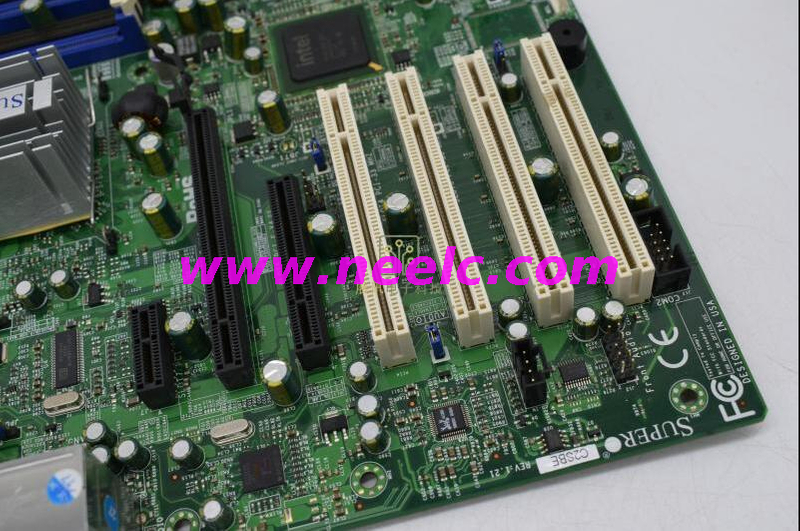

C2SBE servidor motherboard LGA775 Testado trabalho

Key Features

• Socket: LGA775 (Intel Xeon/Core 2 Quad/Dual-Core compatible)

• Chipset: Intel 5100 + ICH9R (Server-grade)

• Form Factor: SSI EEB (12" × 13") - Rack-mountable

• Status: Tested & 100% Operational (Stress-tested for stability)

Technical Specifications

1. Processor Support

• Socket: LGA775 (Flip-Chip Land Grid Array)

• Compatible CPUs:

• Intel Xeon 50xx/51xx/52xx Series (Dual/Quad-Core)

• Intel Core 2 Quad Q9000/Q6000 Series

• Intel Core 2 Duo E8000/E7000 Series

• FSB: 1333/1066/800 MHz

2. Memory

• Slots: 8× DDR2 DIMM (Fully Buffered ECC)

• Max Capacity: 32GB (8×4GB)

• Supported RAM: DDR2-533/667/800 ECC FB-DIMM

• Memory Bandwidth: Dual-channel

3. Expansion & Storage

• PCIe Slots:

• 2× PCIe x16 (Gen1)

• 2× PCIe x8 (Gen1)

• 1× PCI-X 133MHz

• SATA: 6× SATA II (3Gbps, RAID 0/1/5/10 via ICH9R)

• SCSI/SAS: Optional via add-on card

4. Onboard I/O

• Network: 2× Gigabit Ethernet (Intel 82563EB)

• USB: 6× USB 2.0 (4 rear + 2 header)

• Video: Integrated ATI ES1000 (16MB)

• Serial/Parallel: 1× RS-232, 1× LPT

• Management: IPMI 2.0 (Remote monitoring)

5. Power & Cooling

• Power Connectors: 24-pin ATX + 8-pin EPS + 4-pin AUX

• TDP Support: Up to 150W CPUs

• Cooling: Passive heatsinks + 4× 4-pin PWM fan headers

6. BIOS & Firmware

• BIOS: AMI EFI (Latest firmware flashed)

• Features: CPU/RAM voltage control, boot redundancy
