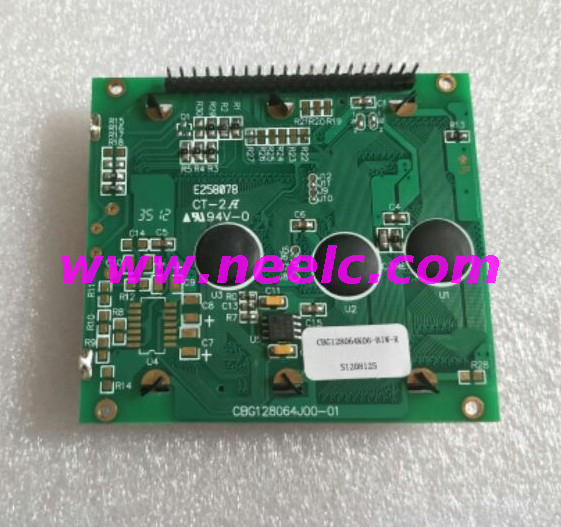

CBG128064K06
Availability: | |
---|---|
Quantity: | |
Display Specification: It has a 128×64 - dot matrix format, which is suitable for displaying simple graphics and text. The display type is STN, and it may offer colors like black - on - yellow - green, with polarization modes including transmissive - reflective / positive. The viewing angle is at 6 o'clock, which means it provides a better viewing effect when the screen is vertically placed.
Electrical Characteristics: The controller is KS0108 or a compatible chip. It has an 8 - bit parallel data bus and operates in the 6800 mode. The logic operating voltage (VDD) is in the range of 4.5 - 5.5V.
Physical Characteristics: The dot size is 0.39x0.55mm, with a dot center - to - center distance of 0.44x0.60mm. The effective display area is 56.27x38.35mm, and the outer dimensions are 78.0x70.0x12.5mm (max). The net weight is approximately 65g.
Temperature Characteristics: The operating temperature range is - 20℃ - + 70℃, and the storage temperature range is - 30℃ - + 80℃.
Nee Electron Technology Co.,LTD. is very professional touch panel company. We have Capacitor and resistance touch glass factory can accept OEM .Especial in Automation industrial device. We can do all kind of size which you need exactly.
We can open module in small quantity and fast delievery time and very reasonable price when you can’t find any kind of touch glass.
We export a lot of countries. almost got 100% good feedbacks, Because we have super good team to control our products quality at very strict. Also, we have a professional service team to service you after sold out products.
Just contact us :
Skype: chasesweet2
WeChat: chasesweet
Whatsapp/Mobile: +86 13928128361
Email: chasesweet@163.com
