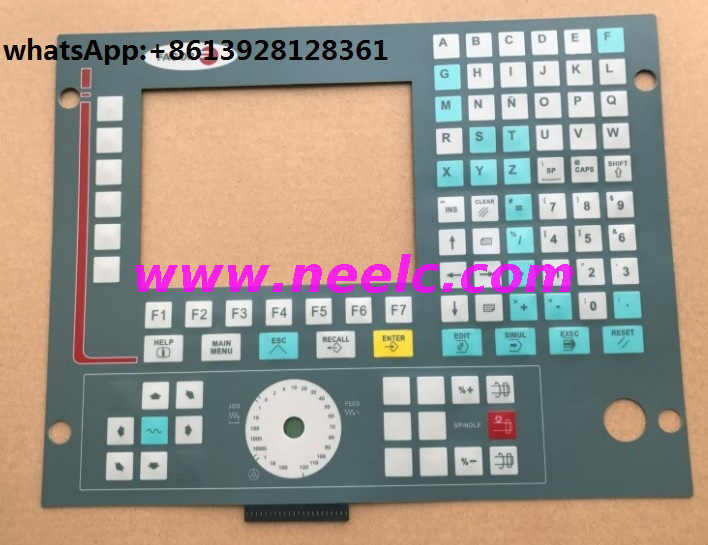

Fagor8035M
Availability: | |
---|---|
Quantity: | |
min order: 1 | |
Manufacturer Part#: 8035M
Type: Tactile Membrane Switch Panel
Compatible With: Fagor CNC controls (8035/8035M series)
Technology: PET/Polyester membrane with silver ink circuitry
Actuation Type: Tactile dome switches
1. Physical Characteristics
Overall Dimensions: 280mm × 180mm (exact OEM size)
Active Area: 240mm × 140mm
Thickness: 0.5mm (membrane) + 0.3mm (graphic overlay)
Surface Material: Polycarbonate overlay (anti-UV treated)
Backing: 3M adhesive (removable liner)
2. Electrical Characteristics
Circuitry: Silver/carbon printed
Contact Resistance: <100Ω
Insulation Resistance: >10MΩ at 100VDC
Current Rating: 100mA max
Voltage Rating: 24VDC max
3. Mechanical Specifications
Tactile Domes: Stainless steel (4.5N actuation force)
Lifecycle: >1 million actuations
Travel Distance: 0.2mm (tactile feedback)
Sealing Rating: IP54 (front panel)
4. Environmental Ratings
Operating Temperature: -20°C to +70°C
Storage Temperature: -30°C to +80°C
Humidity Resistance: 95% RH at 40°C
Chemical Resistance: Resists oils, coolants, and mild solvents
5. Graphic Overlay
Printing Method: Digital UV printing
Legends: Backlit compatible (optional)
Color Matching: Pantone-matched to OEM
Texture: Matte finish (anti-glare)
Manufacturer Part#: 8035M
Type: Tactile Membrane Switch Panel
Compatible With: Fagor CNC controls (8035/8035M series)
Technology: PET/Polyester membrane with silver ink circuitry
Actuation Type: Tactile dome switches
1. Physical Characteristics
Overall Dimensions: 280mm × 180mm (exact OEM size)
Active Area: 240mm × 140mm
Thickness: 0.5mm (membrane) + 0.3mm (graphic overlay)
Surface Material: Polycarbonate overlay (anti-UV treated)
Backing: 3M adhesive (removable liner)
2. Electrical Characteristics
Circuitry: Silver/carbon printed
Contact Resistance: <100Ω
Insulation Resistance: >10MΩ at 100VDC
Current Rating: 100mA max
Voltage Rating: 24VDC max
3. Mechanical Specifications
Tactile Domes: Stainless steel (4.5N actuation force)
Lifecycle: >1 million actuations
Travel Distance: 0.2mm (tactile feedback)
Sealing Rating: IP54 (front panel)
4. Environmental Ratings
Operating Temperature: -20°C to +70°C
Storage Temperature: -30°C to +80°C
Humidity Resistance: 95% RH at 40°C
Chemical Resistance: Resists oils, coolants, and mild solvents
5. Graphic Overlay
Printing Method: Digital UV printing
Legends: Backlit compatible (optional)
Color Matching: Pantone-matched to OEM
Texture: Matte finish (anti-glare)
