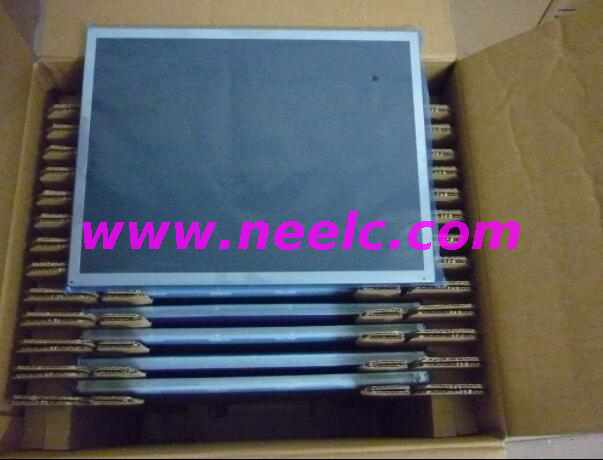

Model: G150XG01 V.0 (Genuine OEM Replacement)
Type: TFT-LCD Module
Technology: a-Si TFT Active Matrix
Backlight: LED (50,000+ Hours Lifetime)
Condition: 100% New & Original
Screen Size: 15.0-inch (4:3 Aspect Ratio)
Resolution: 1024 × 768 (XGA)
Active Area: 304.1mm × 228.1mm
Pixel Pitch: 0.297mm × 0.297mm
Brightness: 400 cd/m² (Typical)
Contrast Ratio: 800:1 (Min.)
Viewing Angle: 170° (H) / 160° (V)
Color Depth: 16.7M (8-bit)
Interface: LVDS (Dual-Channel, 8-bit)
Operating Voltage: 3.3V (Logic) / 5V (Backlight)
Power Consumption: ≤7W (Typical, LED Backlight)
Connector: 30-Pin FPC (0.5mm Pitch, OEM Standard)
Module Dimensions: 336mm × 252mm × 12.5mm
Weight: ~850g
Mounting: 4x M4 Screw Holes (OEM-Compatible)
Bezel Material: Metal Frame (EMI Shielded)
Operating Temperature: -20°C to +70°C
Storage Temperature: -30°C to +80°C
Humidity Resistance: 90% RH (Non-Condensing)
MTBF: 50,000 Hours (at 25°C)
Replaces: G150XG01 V.1, G150XG02
Used In:
Industrial HMIs (Siemens, Allen-Bradley)
Medical Imaging Displays
Military/Aerospace Equipment
Nee Electron Technology Co.,LTD. is very professional touch panel company. We have Capacitor and resistance touch glass factory can accept OEM .Especial in Automation industrial device. We can do all kind of size which you need exactly.
We can open module in small quantity and fast delievery time and very reasonable price when you can’t find any kind of touch glass.
We export a lot of countries. almost got 100% good feedbacks, Because we have super good team to control our products quality at very strict. Also, we have a professional service team to service you after sold out products.
Just contact us :
Skype: chasesweet2
WeChat: chasesweet
Whatsapp/Mobile: +86 13928128361
Email: chasesweet@163.com
Model: G150XG01 V.0 (Genuine OEM Replacement)
Type: TFT-LCD Module
Technology: a-Si TFT Active Matrix
Backlight: LED (50,000+ Hours Lifetime)
Condition: 100% New & Original
Screen Size: 15.0-inch (4:3 Aspect Ratio)
Resolution: 1024 × 768 (XGA)
Active Area: 304.1mm × 228.1mm
Pixel Pitch: 0.297mm × 0.297mm
Brightness: 400 cd/m² (Typical)
Contrast Ratio: 800:1 (Min.)
Viewing Angle: 170° (H) / 160° (V)
Color Depth: 16.7M (8-bit)
Interface: LVDS (Dual-Channel, 8-bit)
Operating Voltage: 3.3V (Logic) / 5V (Backlight)
Power Consumption: ≤7W (Typical, LED Backlight)
Connector: 30-Pin FPC (0.5mm Pitch, OEM Standard)
Module Dimensions: 336mm × 252mm × 12.5mm
Weight: ~850g
Mounting: 4x M4 Screw Holes (OEM-Compatible)
Bezel Material: Metal Frame (EMI Shielded)
Operating Temperature: -20°C to +70°C
Storage Temperature: -30°C to +80°C
Humidity Resistance: 90% RH (Non-Condensing)
MTBF: 50,000 Hours (at 25°C)
Replaces: G150XG01 V.1, G150XG02
Used In:
Industrial HMIs (Siemens, Allen-Bradley)
Medical Imaging Displays
Military/Aerospace Equipment
Nee Electron Technology Co.,LTD. is very professional touch panel company. We have Capacitor and resistance touch glass factory can accept OEM .Especial in Automation industrial device. We can do all kind of size which you need exactly.
We can open module in small quantity and fast delievery time and very reasonable price when you can’t find any kind of touch glass.
We export a lot of countries. almost got 100% good feedbacks, Because we have super good team to control our products quality at very strict. Also, we have a professional service team to service you after sold out products.
Just contact us :
Skype: chasesweet2
WeChat: chasesweet
Whatsapp/Mobile: +86 13928128361
Email: chasesweet@163.com
