Basic Information

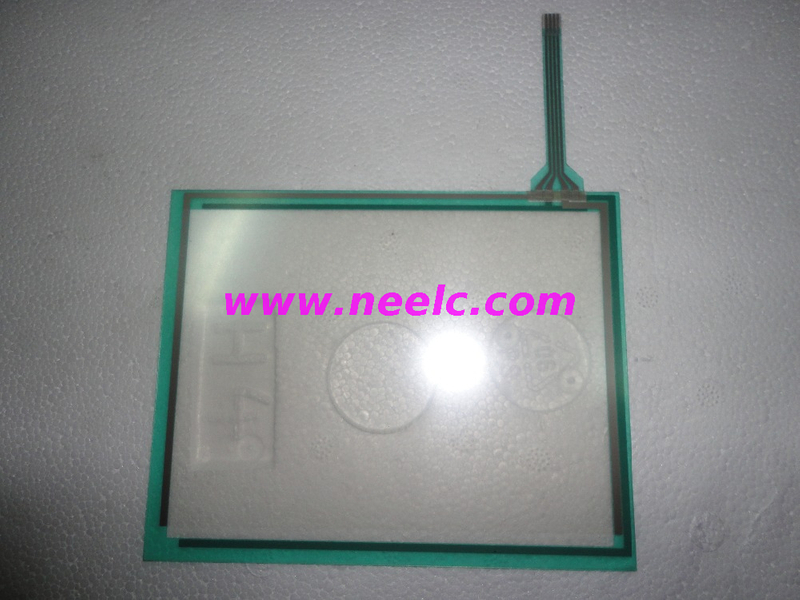

Model: AIG32MQ04D, belonging to the GT32 series of Panasonic industrial automation products.
Type: Touch - screen glass for human - machine interface (HMI).
Physical Characteristics
Size: The touch - screen glass is designed for a 5.7 - inch display, with a touch panel outline of 138 mm * 109 mm5.
Thickness: The overall thickness of the GT32 series is 39.1 mm, and the thickness of the touch - screen glass is relatively thin, which is usually about 0.5 - 1.5 mm, but the specific value needs to be confirmed according to the actual product4.
Material: Usually made of high - quality glass materials, which have good light transmittance and hardness, and can resist scratches and wear to a certain extent.
Electrical Characteristics
Working Voltage: The input voltage is 24 VDC. It has stable electrical performance and can work normally within the voltage range of 24 VDC ± 10%.
Insulation Resistance: The insulation resistance of the touch - screen glass is required to be greater than 100 MΩ to ensure the safety and stability of the circuit.
Touch Sensitivity: It adopts resistive touch technology, which has high touch sensitivity and accuracy. The response time is less than 10 ms, and it can accurately sense the touch position and operation of users.
Display Characteristics
Display Type: Monochrome display. It can display clear text and graphics, and is suitable for applications that do not require high - color display.
Resolution: The resolution is 320 x 240 dots. This resolution can provide a relatively clear display effect and meet the basic needs of information display.
Backlight: It is equipped with a long - life LED backlight, which can provide sufficient brightness and has a long service life. The brightness of the backlight is adjustable, which can adapt to different ambient light conditions.
Environmental Adaptability
Operating Temperature: The operating temperature range is - 20 °C to + 60 °C. It can work stably in different temperature environments and has strong environmental adaptability.
Humidity Resistance: It can work normally in the environment of 10% - 90% relative humidity without condensation, and has good waterproof and moisture - proof performance.
UV Resistance: The front of the touch - screen glass is provided with a protective layer to minimize the aging process related to UV rays, which can prevent the touch - screen glass from being damaged by UV rays and prolong its service life.
