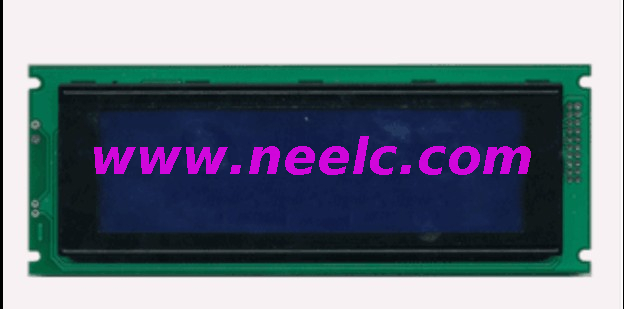

Model: JHD732-24064C / JHD24064C (Direct OEM Replacement)
Type: Graphic LCD Module
Technology: STN (Super Twisted Nematic) LCD with LED Backlight
Compatibility: Industrial control systems, medical devices, test equipment
Display Type: 240×64 Dots Graphic LCD
Active Area: 122mm × 32mm
Viewing Direction: 6 o’clock (standard) / customizable
Backlight: Yellow-Green LED (default) / White/Blue optional
Brightness: ≥200 cd/m² (LED backlight)
Contrast Ratio: 1:8 (adjustable via potentiometer)
Controller: KS0108 (or equivalent)
Interface: 8-bit parallel / 6800-series MPU
Operating Voltage: 5V ±10%
Current Consumption:
LCD: ≤5mA (typical)
Backlight: ≤120mA (LED, at 5V)
Response Time: 300ms (rise) / 400ms (fall)
Module Dimensions: 149mm × 60mm × 13mm
Viewing Area: 122mm × 32mm
Weight: ~150g
Connector: 20-pin header (2.54mm pitch)
Operating Temperature: -20°C to +70°C
Storage Temperature: -30°C to +80°C
Humidity Resistance: 85% RH (non-condensing)
MTBF: 50,000 hours (at 25°C)
| Pin | Function | Pin | Function |
|---|---|---|---|
| 1 | VSS (GND) | 11 | DB4 |
| 2 | VDD (+5V) | 12 | DB5 |
| 3 | VO (Contrast) | 13 | DB6 |
| 4 | RS (H/L) | 14 | DB7 |
| 5 | R/W (H/L) | 15 | CS1 |
| 6 | E (Enable) | 16 | CS2 |
| 7 | DB0 | 17 | RST |
| 8 | DB1 | 18 | VEE (-10V) |
| 9 | DB2 | 19 | LED+ (Backlight) |
| 10 | DB3 | 20 | LED- (Backlight) |
