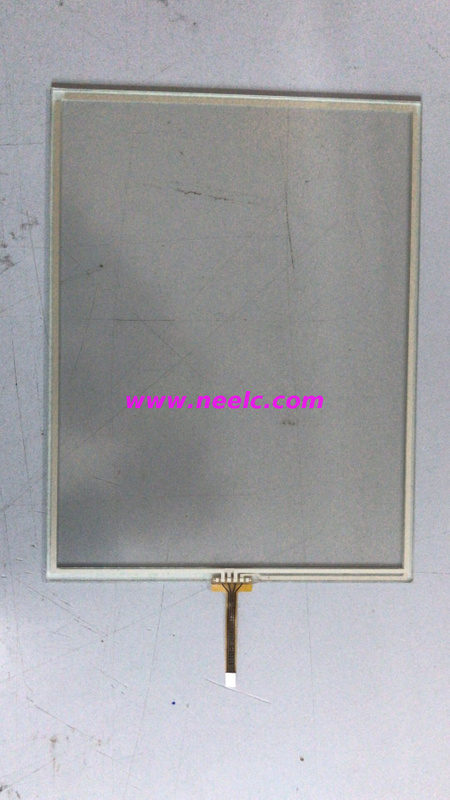

KDT-544 new and original touch glass

Product Overview

• Model: KDT-544 (Direct OEM Replacement)

• Type: Projected Capacitive (PCAP) Touch Glass

• Technology: Glass-on-Glass (GG) with ITO Coating

• Compatibility: Exact fit for KDT-544 industrial displays

Technical Specifications

1. Physical Characteristics

• Screen Size: 5.0-inch (4:3 or 16:9, confirm exact model)

• Active Area: 102mm × 76mm (or custom per OEM specs)

• Thickness: 1.1mm / 1.8mm (tempered glass options)

• Surface Material: Chemically Strengthened Aluminosilicate Glass

• Border: Black/White silk-screen printing (OEM-matched)

2. Touch Performance

• Touch Points: 10-point multi-touch

• Response Time: ≤4ms

• Report Rate: 120Hz

• Accuracy: ±1mm

• Operating Voltage: 3.3V DC

3. Durability & Environmental

• Surface Hardness: ≥9H (Pencil Hardness)

• Operating Temp: -30°C to +85°C

• Humidity Resistance: 95% RH (non-condensing)

• Impact Resistance: 1.5mm steel ball @ 50cm drop test passed

4. Optical Properties

• Transmittance: ≥92% (550nm wavelength)

• Anti-Glare (AG) / Anti-Fingerprint (AF): Optional coatings

• Haze: ≤0.5%

5. Interface & Compatibility

• Controller: FT5x06 / GT911 (pre-configured)

• Connector: FPC (ZIF, 10-20 pin, custom length)

• OS Support: Windows/Linux/Android/QNX

6. Certifications

• RoHS / REACH Compliant

• CE / FCC EMC Certified

• IP65 (Optional)
