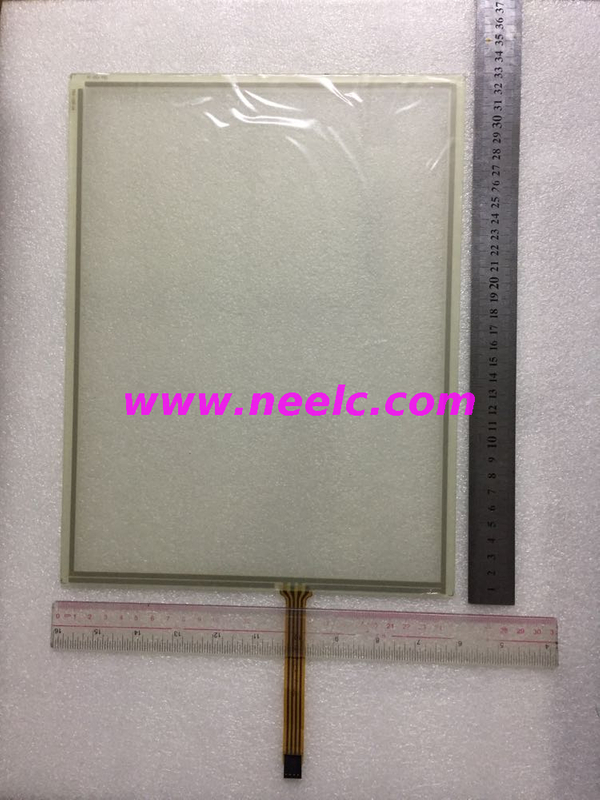

KDT-545 330x253 mm 4 wire
Availability: | |
---|---|
Quantity: | |
min order: 1 | |
Type: Analog Resistive Touch Panel (4-Wire)
Technology: Glass/Film Construction
Compatible Models: Designed for KDT-545 industrial displays
Status: 100% New & Original (OEM Standard)
1. Physical Characteristics
Active Area: 330mm × 253mm (13" diagonal)
Total Thickness: 2.3mm ±0.1mm (glass + sensor)
Cover Glass: 1.1mm tempered glass (chemically strengthened)
Sensor Layer: ITO-coated polyester film
Surface Hardness: 7H (Mohs scale)
2. Touch Performance
Touch Points: Single-touch
Actuation Force: 50-100g
Response Time: <10ms
Linearity Error: <1.5%
Durability: >5 million touches
3. Electrical Characteristics
Operating Voltage: 5V DC ±10%
Interface: Analog resistive (X/Y output)
Insulation Resistance: >100MΩ at 100VDC
Power Consumption: <15mA
4. Environmental Specifications
Operating Temperature: -20°C to +70°C
Storage Temperature: -30°C to +85°C
Humidity Resistance: 90% RH (non-condensing)
ESD Protection: ±15kV (air discharge)
5. Optical Properties
Transmittance: ≥85% (550nm wavelength)
Haze: ≤1.0%
Surface Finish: Glossy (matte optional)
6. Mechanical Durability
Scratch Resistance: Steel wool test (500g, 100 cycles)
Chemical Resistance: Resists IPA, ethanol, and mild solvents
Connector: 10-pin FPC (ZIF, 1.0mm pitch)
Controller Compatibility: Standard 4-wire resistive controllers
OS Support: Windows, Linux, Android, QNX
RoHS 3 Compliant
REACH SVHC Compliant
CE/FCC (upon request)
Nee Electron Technology Co.,LTD. is very professional touch panel company. We have Capacitor and resistance touch glass factory can accept OEM .Especial in Automation industrial device. We can do all kind of size which you need exactly.
We can open module in small quantity and fast delievery time and very reasonable price when you can’t find any kind of touch glass.
We export a lot of countries. almost got 100% good feedbacks, Because we have super good team to control our products quality at very strict. Also, we have a professional service team to service you after sold out products.
Just contact us :
Skype: chasesweet2
WeChat: chasesweet
Whatsapp/Mobile: +86 13928128361
Email: chasesweet@163.com
Type: Analog Resistive Touch Panel (4-Wire)
Technology: Glass/Film Construction
Compatible Models: Designed for KDT-545 industrial displays
Status: 100% New & Original (OEM Standard)
1. Physical Characteristics
Active Area: 330mm × 253mm (13" diagonal)
Total Thickness: 2.3mm ±0.1mm (glass + sensor)
Cover Glass: 1.1mm tempered glass (chemically strengthened)
Sensor Layer: ITO-coated polyester film
Surface Hardness: 7H (Mohs scale)
2. Touch Performance
Touch Points: Single-touch
Actuation Force: 50-100g
Response Time: <10ms
Linearity Error: <1.5%
Durability: >5 million touches
3. Electrical Characteristics
Operating Voltage: 5V DC ±10%
Interface: Analog resistive (X/Y output)
Insulation Resistance: >100MΩ at 100VDC
Power Consumption: <15mA
4. Environmental Specifications
Operating Temperature: -20°C to +70°C
Storage Temperature: -30°C to +85°C
Humidity Resistance: 90% RH (non-condensing)
ESD Protection: ±15kV (air discharge)
5. Optical Properties
Transmittance: ≥85% (550nm wavelength)
Haze: ≤1.0%
Surface Finish: Glossy (matte optional)
6. Mechanical Durability
Scratch Resistance: Steel wool test (500g, 100 cycles)
Chemical Resistance: Resists IPA, ethanol, and mild solvents
Connector: 10-pin FPC (ZIF, 1.0mm pitch)
Controller Compatibility: Standard 4-wire resistive controllers
OS Support: Windows, Linux, Android, QNX
RoHS 3 Compliant
REACH SVHC Compliant
CE/FCC (upon request)
Nee Electron Technology Co.,LTD. is very professional touch panel company. We have Capacitor and resistance touch glass factory can accept OEM .Especial in Automation industrial device. We can do all kind of size which you need exactly.
We can open module in small quantity and fast delievery time and very reasonable price when you can’t find any kind of touch glass.
We export a lot of countries. almost got 100% good feedbacks, Because we have super good team to control our products quality at very strict. Also, we have a professional service team to service you after sold out products.
Just contact us :
Skype: chasesweet2
WeChat: chasesweet
Whatsapp/Mobile: +86 13928128361
Email: chasesweet@163.com
