General Information

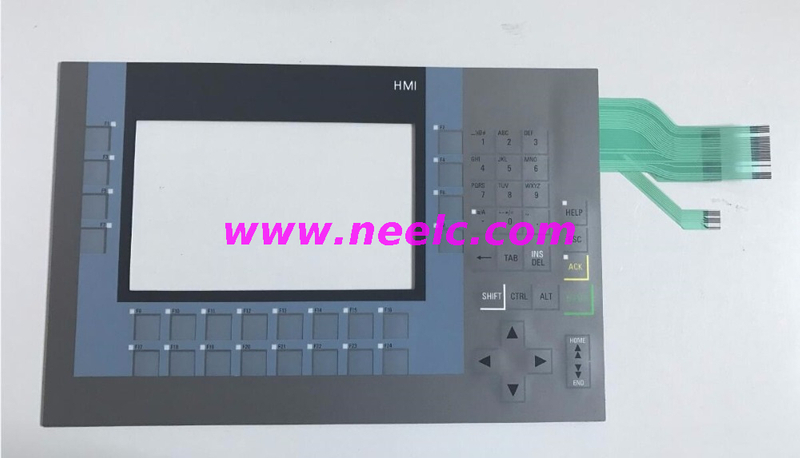

Model: 6AV2124 - 1GC01 - 0AX0, belonging to the SIMATIC HMI KP700 Comfort series. It is a comfort - class panel designed for demanding operator control and monitoring tasks.
Physical Characteristics
Size: It features a 7 - inch widescreen TFT display with a display width of 152.4 mm and a height of 91.4 mm. The overall dimensions of the device are approximately 299 mm in length and 195 mm in width5.
Weight: The net weight is about 1.571 kg, and the weight with packaging is 2.8 kg5.
Protection Class: The front side is of IP65 protection class, and the rear side is of IP20 protection class, which can prevent dust and water ingress to a certain extent6.
Electrical Characteristics
Power Supply: It operates on a 24V DC power supply, with a rated current consumption of 0.5 A and a typical active power input of 12 W5.
Display Characteristics
Resolution: The display has a resolution of 800×480 pixels.
Color: It can display 16 million colors, offering a vivid and clear visual experience1.
Interface and Function
Communication Interfaces: It is equipped with a PROFINET interface and an MPI/PROFIBUS - DP interface, which can be connected to various industrial networks. In addition, it has 1 RS - 485 interface, 2 USB interfaces, and 1 industrial Ethernet interface, which is convenient for data communication and device connection.
Keys: It is equipped with 24 function keys with LEDs, which can realize various operation functions. It also has numeric and alphanumeric keyboards for convenient data input.
Memory: It has 12 MB of configuration memory and 4 MB of user - available memory, which can store programs and data.
Software and System
Operating System: It adopts Windows CE 6.0 operating system.
Configuration Software: It can be configured by WinCC Comfort V11 software.
Environmental Adaptability
Operating Temperature: The operating temperature range is 0 °C - 50 °C.
Relative Humidity: It can work in an environment with a relative humidity of 10% - 90% without condensation.
General Information
Model: 6AV2124 - 1GC01 - 0AX0, belonging to the SIMATIC HMI KP700 Comfort series. It is a comfort - class panel designed for demanding operator control and monitoring tasks.
Physical Characteristics
Size: It features a 7 - inch widescreen TFT display with a display width of 152.4 mm and a height of 91.4 mm. The overall dimensions of the device are approximately 299 mm in length and 195 mm in width5.
Weight: The net weight is about 1.571 kg, and the weight with packaging is 2.8 kg5.
Protection Class: The front side is of IP65 protection class, and the rear side is of IP20 protection class, which can prevent dust and water ingress to a certain extent6.
Electrical Characteristics
Power Supply: It operates on a 24V DC power supply, with a rated current consumption of 0.5 A and a typical active power input of 12 W5.
Display Characteristics
Resolution: The display has a resolution of 800×480 pixels.
Color: It can display 16 million colors, offering a vivid and clear visual experience1.
Interface and Function
Communication Interfaces: It is equipped with a PROFINET interface and an MPI/PROFIBUS - DP interface, which can be connected to various industrial networks. In addition, it has 1 RS - 485 interface, 2 USB interfaces, and 1 industrial Ethernet interface, which is convenient for data communication and device connection.
Keys: It is equipped with 24 function keys with LEDs, which can realize various operation functions. It also has numeric and alphanumeric keyboards for convenient data input.
Memory: It has 12 MB of configuration memory and 4 MB of user - available memory, which can store programs and data.
Software and System
Operating System: It adopts Windows CE 6.0 operating system.
Configuration Software: It can be configured by WinCC Comfort V11 software.
Environmental Adaptability
Operating Temperature: The operating temperature range is 0 °C - 50 °C.
Relative Humidity: It can work in an environment with a relative humidity of 10% - 90% without condensation.
