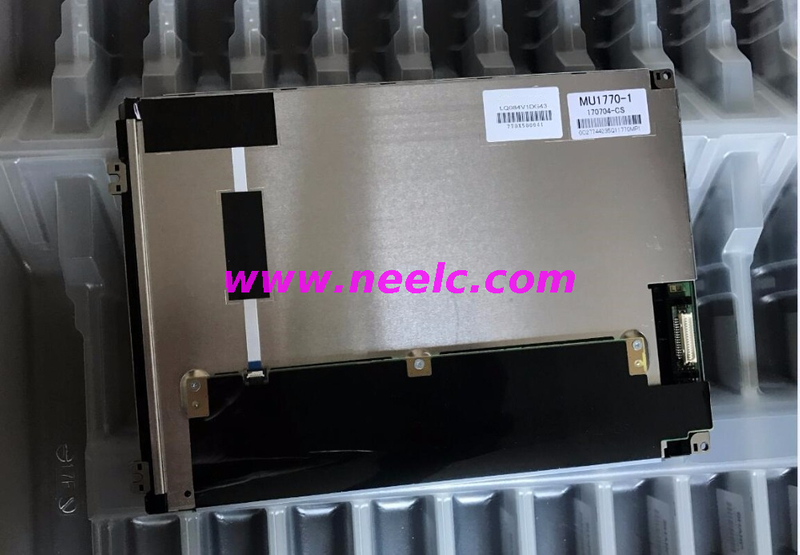

LQ084V1DG43 lcd panel

Product Overview

• Model: LQ084V1DG43 (Original Sharp Panel)

• Type: TFT-LCD Module

• Technology: a-Si TFT Active Matrix

• Backlight: LED (Edge-Lit, 50,000+ Hours Lifetime)

• Condition: New & Original (OEM Quality)

Technical Specifications

1. Display Characteristics

• Screen Size: 8.4-inch (4:3 Aspect Ratio)

• Resolution: 800 × 600 (SVGA)

• Active Area: 170.9mm × 128.2mm

• Pixel Pitch: 0.21375mm × 0.21375mm

• Brightness: 400 cd/m² (Typical)

• Contrast Ratio: 800:1 (Min.)

• Viewing Angle: 140° (H) / 130° (V)

• Color Depth: 262K (6-bit + FRC)

2. Electrical Specifications

• Interface: LVDS (Single-Channel, 18/24-bit)

• Operating Voltage: 3.3V (Logic) / 12V (Backlight)

• Power Consumption: ≤4.5W (Typical, LED Backlight)

• Connector: 30-Pin FPC (0.5mm Pitch, Sharp Standard)

3. Mechanical Specifications

• Module Dimensions: 199mm × 146mm × 11.5mm

• Weight: ~350g

• Mounting: 4x M3 Screw Holes (OEM-Compatible)

• Bezel Material: Aluminum (EMI Shielded)

4. Environmental & Reliability

• Operating Temperature: -30°C to +80°C

• Storage Temperature: -40°C to +85°C

• Humidity Resistance: 90% RH (Non-Condensing)

• MTBF: 50,000 Hours (at 25°C)

5. Compatibility

• Replaces: LQ084V1DG51, LQ084V3DG01

• Used In:

• Industrial HMIs (Siemens, Allen-Bradley)

• Medical Imaging Devices

• Test & Measurement Equipment

•
