General Information

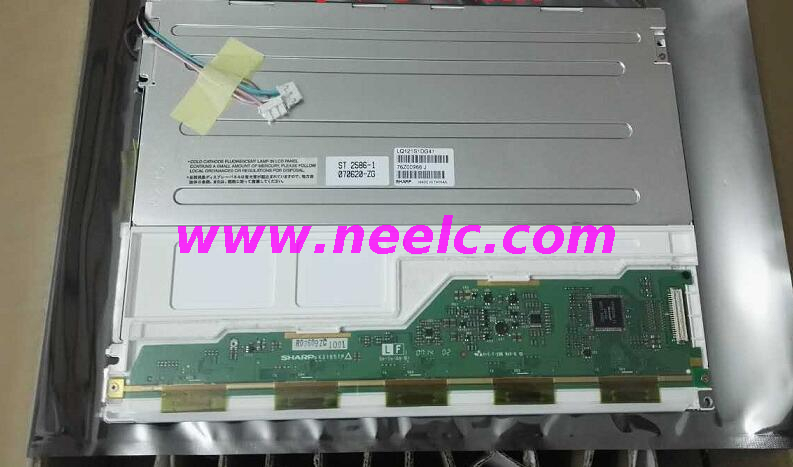

Model: LQ121S1DG41
Type: LCD panel
Screen Size: 12.1 inches
Applications: Industrial control
Touch Function: None
Electrical Parameters
Input Voltage: 3.3V/5.0V
Electrical Interface: TTL (6 - bit)
White Luminance: 370 cd/m²
Contrast Ratio: 450:1
Response Time, Rising: 10 msec
Response Time, Falling: 25 msec
Resolution and Pixel Parameters
Native Resolution: 800×600 (SVGA)
Pixel Pitch: 0.3075×0.3075 mm
Viewing Angle
Viewing Angle - Horizontal: 70°
Viewing Angle - Vertical: 60°
Physical Dimensions
Active Area: 246.0 (h) × 184.5 (v) mm
Outline Dimension: 276.0 (w) × 209.0 (h) × 11.0 (d) mm
Temperature Range
Operating Temperature: - 10 °C ~ + 65 °C
Storage Temperature: - 30 °C ~ + 70 °C
Backlight
Backlight Type: CCFL (Dual CCFL backlight lamps originally, can be upgraded to LED)
Backlight Connector: BHR - 03VS - 1X2
