Home » Products » LCD Panel & Touch Screen » LTM10C209A new and original LCD Panel

PRODUCT DETAIL

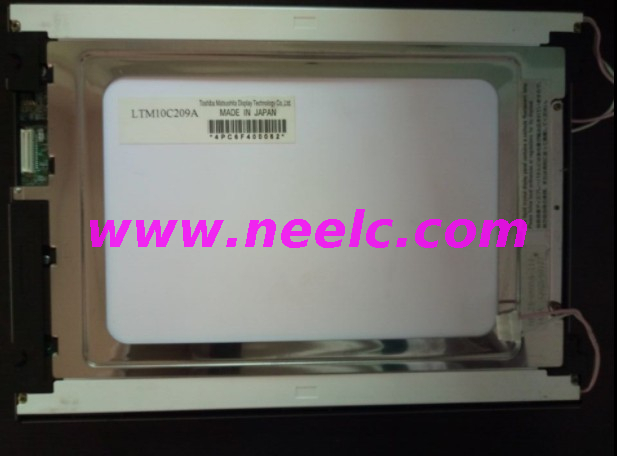

LTM10C209A new and original LCD Panel LTM10C209A new and original LCD Panel

loading

LTM10C209A new and original LCD Panel

5 0 Reviews
LTM10C209A new and original LCD Panel
Price: $ 92
  • LTM10C209A

Availability:
Quantity:
min order: 1
View wholesale prices View wholesale prices
  • Quantity Price
  • 5 $-5
sign in to view wholesale price

Product Overview

  • Model: LTM10C209A (Genuine OEM Replacement)

  • Type: TFT-LCD Module

  • Technology: a-Si TFT Active Matrix

  • Backlight: LED (50,000+ Hours Lifetime)

  • Condition: 100% New & Original (Samsung Display)


Technical Specifications

1. Display Characteristics

  • Screen Size: 10.4-inch (4:3 Aspect Ratio)

  • Resolution: 800 × 600 (SVGA)

  • Active Area: 211.2mm × 158.4mm

  • Pixel Pitch: 0.264mm × 0.264mm

  • Brightness: 400 cd/m² (Typical)

  • Contrast Ratio: 800:1 (Min.)

  • Viewing Angle: 140° (H) / 130° (V)

  • Color Depth: 262K (6-bit + FRC)

2. Electrical Specifications

  • Interface: LVDS (Single-Channel, 18/24-bit)

  • Operating Voltage: 3.3V (Logic) / 5V (Backlight)

  • Power Consumption: ≤5W (Typical, LED Backlight)

  • Connector: 20-Pin FPC (0.5mm Pitch, OEM Standard)

3. Mechanical Specifications

  • Module Dimensions: 246mm × 185mm × 11.5mm

  • Weight: ~550g

  • Mounting: 4x M3 Screw Holes (OEM-Compatible)

  • Bezel Material: Metal Frame (EMI Shielded)

4. Environmental & Reliability

  • Operating Temperature: -20°C to +70°C

  • Storage Temperature: -30°C to +80°C

  • Humidity Resistance: 90% RH (Non-Condensing)

  • MTBF: 50,000 Hours (at 25°C)

5. Compatibility

  • Replaces: LTM10C209, LTM10C209B

  • Used In:

    • Industrial HMIs (Siemens, Allen-Bradley)

    • Medical Equipment

    • Test & Measurement Devices

Nee Electron Technology Co.,LTD. is very professional touch panel company. We have Capacitor and resistance touch glass factory can accept OEM .Especial in Automation industrial device. We can do all kind of size which you need exactly.

We can open module in small quantity and fast delievery time and very reasonable price when you can’t find any kind of touch glass.

We export a lot of countries. almost got 100% good feedbacks, Because we have super good team to control our products quality at very strict. Also, we have a professional service team to service you after sold out products.

Just contact us :

Skype: chasesweet2

WeChat: chasesweet

Whatsapp/Mobile: +86 13928128361

Email: chasesweet@163.com


LTM10C209A
