General Information

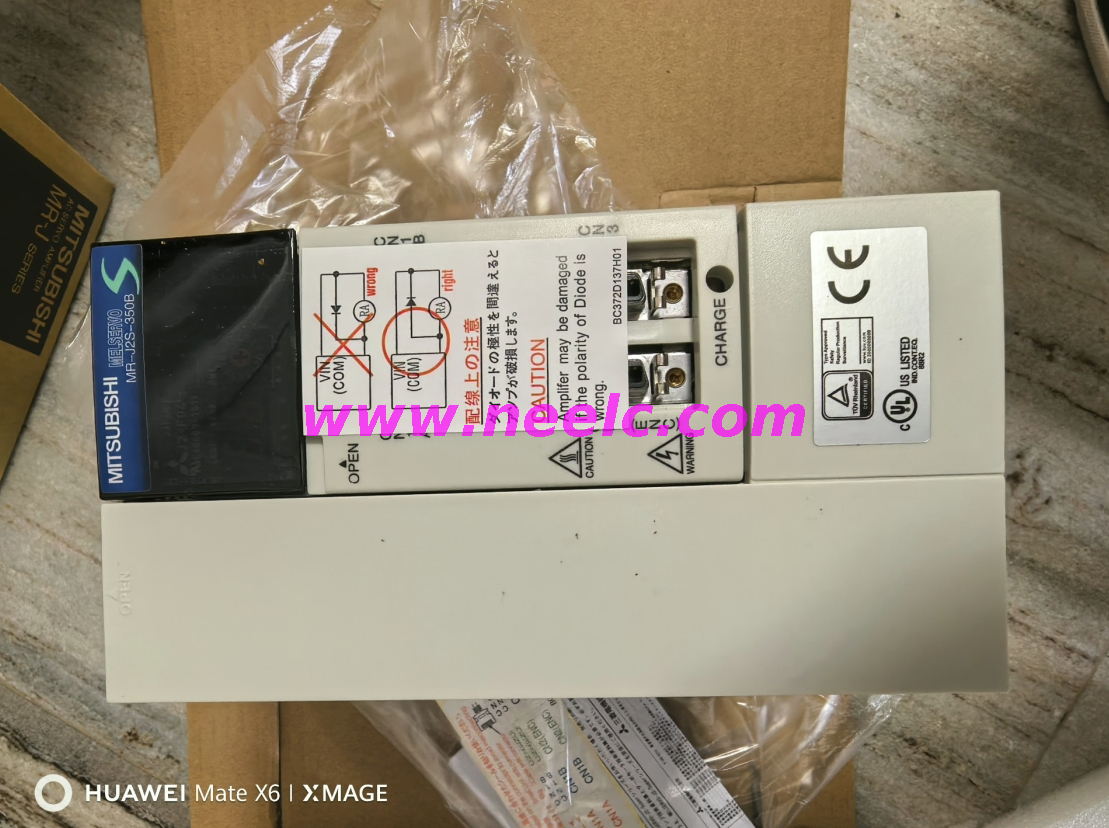

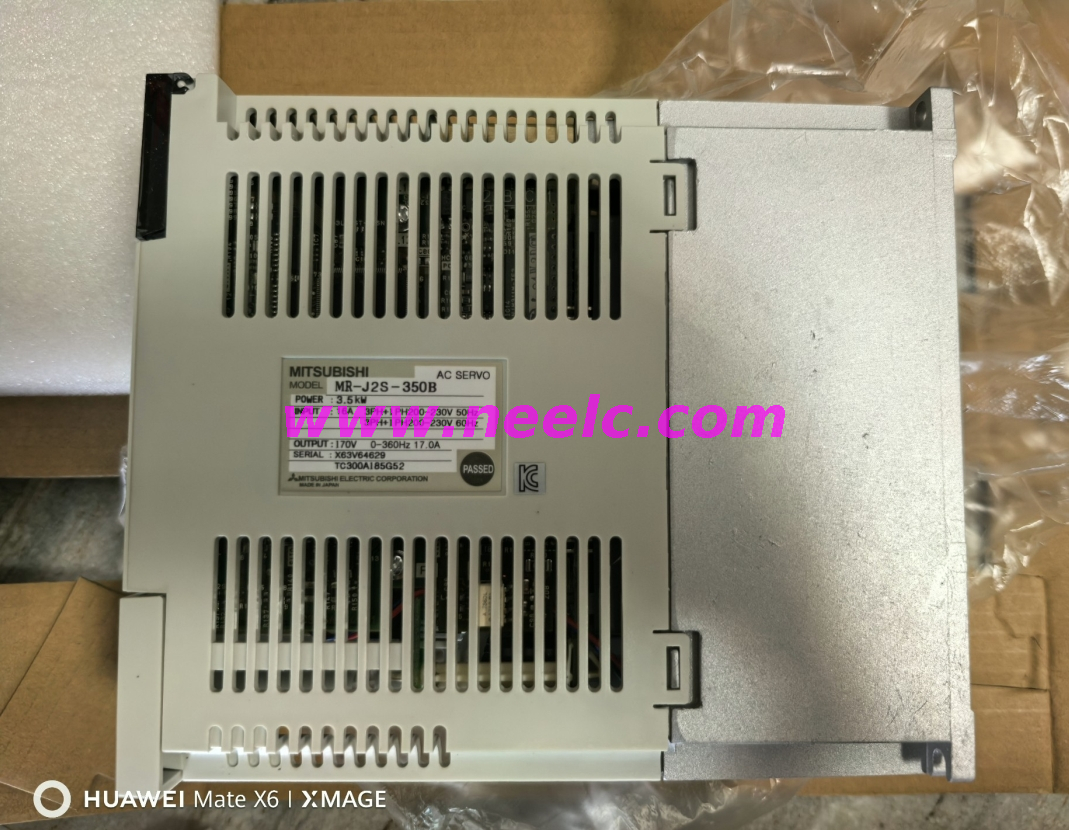

Model: MR - J2S - 350B
Product Type: AC servo amplifier
Power Supply
Voltage/Frequency: 3 - phase 200 - 230VAC, 50/60Hz
Permissible Voltage Fluctuation: 3 - phase 170 - 253VAC
Permissible Frequency Fluctuation: Within 5%
Control System
Control Mode: Sine - wave PWM control, current control system
Function
Dynamic Brake: Built - in
Structure and Dimensions
Structure: Force - cooling, open (IP00)
Dimensions: 9cm×16.8cm×19.5cm
Weight: 2kg
Shipping Weight: 3kg
Environmental Parameters
Ambient Temperature (Operation): 0 - 55°C (32 - 131°F, non - freezing)
Ambient Temperature (Storage): - 20 - 65°C (- 4 - 149°F, non - freezing)
Ambient Humidity (Operation): 90% RH or less (non - condensing)
Ambient Humidity (Storage): 90% RH or less (non - condensing)
Altitude: Max 1000m (3280ft) above sea level
Vibration: 5.9m/s² or less (19.4ft/s² or less)
