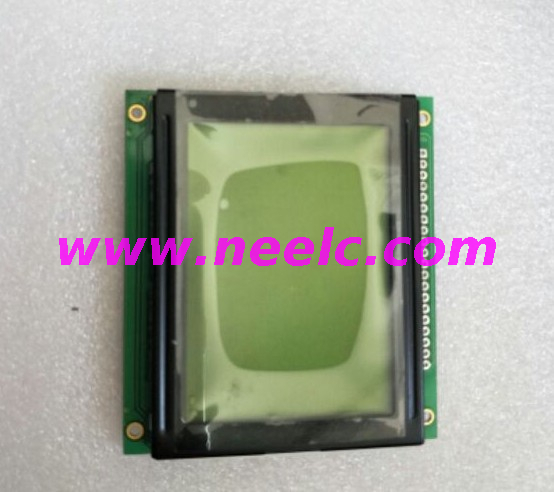

MS12864F-3 LCD Panel new

Technical Specifications

1. Resolution and Display Type

• It has a resolution of 128×64 pixels. This is a relatively low-resolution display, which is typical for character and simple graphic LCD panels. The display type is likely a monochrome liquid crystal display, often with a black-and-white or black-on-blue color scheme (common in this kind of panel). It can display text characters and simple graphical elements such as lines, dots, and basic shapes.

2. Display Technology

• Typically, it uses a passive matrix LCD technology. In passive matrix displays, the pixels are controlled by a grid of electrodes, and the control of individual pixels is a bit more limited compared to active matrix (TFT) displays. However, passive matrix LCDs are simpler in design and can be more cost-effective, making them suitable for applications where high-resolution and complex graphics are not required.

3. Viewing Angle

• The viewing angle of the MS12864F - 3 is usually limited compared to more advanced LCD panels. Horizontally, it may offer a viewing angle of around 120 degrees or so, and vertically, the viewing angle can be even more restricted. This means that the display is best viewed directly in front of it, and as the viewing angle changes, the contrast and visibility of the displayed content may decrease.

4. Backlight (if applicable)

• Some versions of this panel may come with an optional backlight. If it has a backlight, it can improve the visibility of the display in low-light conditions. The backlight is often a simple LED-based system that provides a uniform illumination across the panel. The color of the backlight is usually white or a single color like blue, which enhances the contrast between the display elements and the background.

Electrical and Physical Attributes

1. Power Supply

• It typically operates at a low DC voltage, often around 3.3V or 5V. The power consumption is relatively low, which is beneficial for battery-powered devices or applications where power efficiency is a concern. For example, in a simple handheld device or a small embedded system, the low power draw of this panel helps to extend the battery life.

2. Size and Mounting

• The physical size of the MS12864F - 3 is designed to be compact. It is suitable for integration into small enclosures or devices. It usually comes with standard mounting holes or a mounting mechanism that allows it to be easily installed in various product designs. The panel's dimensions are carefully designed to fit the requirements of the applications it serves, such as in small consumer electronics or industrial control devices.

Applications

1. Industrial Control and Monitoring

• In industrial settings, the MS12864F - 3 can be used to display simple status information, such as the on/off status of equipment, error codes, or basic process parameters. Its simplicity and reliability make it a suitable choice for harsh industrial environments where a more complex display may not be necessary.

2. Consumer Electronics

• It is commonly found in consumer electronics products like digital clocks, calculators, and simple remote controls. In these devices, the panel is used to display basic information such as time, numbers, and menu options. Its low power consumption and cost-effectiveness make it an ideal choice for mass-market consumer products.

3. Medical Devices (Simple Monitors)

• Some basic medical devices, such as simple patient monitors or blood pressure monitors, may use this panel to display essential patient data in a clear and straightforward manner. The monochrome display is sufficient for showing numerical values and simple status indicators in these applications.
