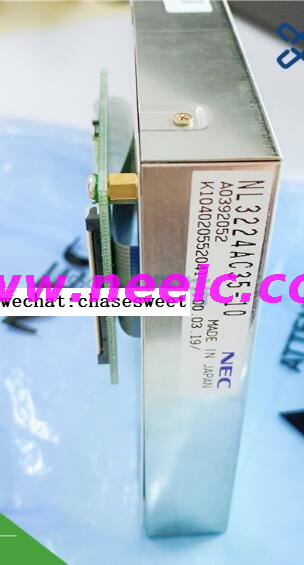

NL3224AC35-10 New LCD Panel

Basic Information

• Panel Model: NL3224AC35 - 10

• Panel Type: a - Si TFT - LCD Panel

• Panel Size: 5.5 inches

• Resolution: 320 (RGB) × 240 (QVGA)

• Aspect Ratio: 5:4 (W:H)

• Pixel Configuration: RGB Vertical Stripe

• Pixel Pitch: 0.348×0.348 mm (W×H)

• Active Area: 111.36×83.52 mm (W×H)

• Outline Dimension: 134.0×110.0 mm (W×H)

• Outline Depth: 22.0±1.0 mm

• Weight: 335 g

• Application Field: Industrial Applications

Optical Characteristics

• Display Mode: TN, Normally White, Transmissive

• Surface Glare: Haze 0%, Hard Coating (2H)

• Brightness: 250 cd/m² (Typ.)

• Contrast Ratio: 85:1 (Typ.) (Transmissive)

• Display Colors: Full Color

• Color Gamut: 50%

• Response Time: 16/44 (Typ.) (Rise Time/Fall Time, Unit: ms)

• Viewing Angle: 50/50/25/25 (Typ.) (CR≥10) (L/R/U/D)

Electronics Features

• Vertical Frequency: 60Hz

• Reverse Scan: Yes (U/D, L/R)

• Total Power Consumption: 6.5W (Typ.)

• Time Controller (T - CON): Embedded T - CON

Backlight System

• Lamp Position: Edge Light Type

• Lamp Type: CCFL

• Lamp Amount: 1 pc

• Lamp Shape: Straight

• Lamp Driver Board: None

Signal Interface

• Signal Category: LVDS

• Signal Class: CMOS (1 ch, 6 - bit) + SPI

• Input Voltage for Panel: 12.0V (Typ.)

• Input Current for Panel: 145 mA (Typ.)

• Interface Type: Connector

• Interface Brand: Molex

• Interface Model: 52610 - 2417

• Interface Pin Pitch: 1.0 mm

• Interface Amount: 1 pc

• Interface Pins: 24 pins

Temperature Characteristics

• Operating Temperature: 0 - 70°C

• Storage Temperature: - 20 - 70°C
