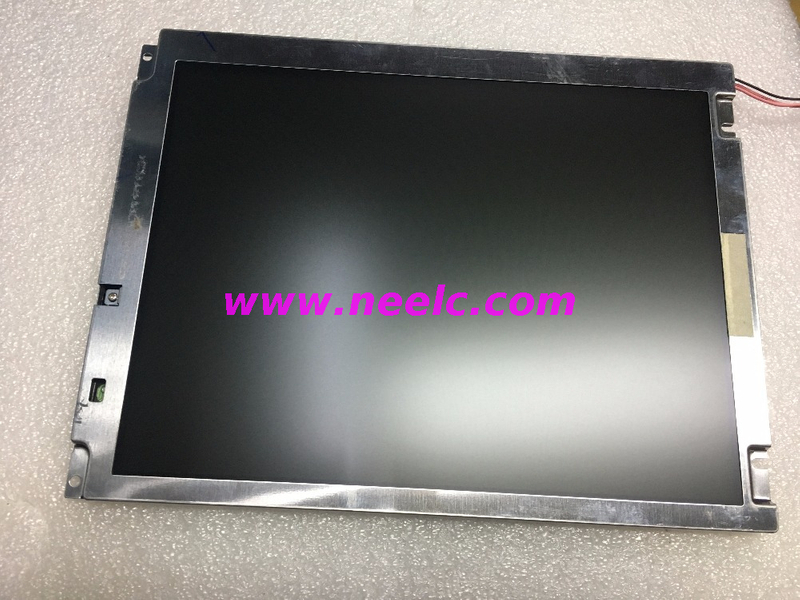

NL6448BC33-74H LCD Panel

5 0 Reviews
NL6448BC33-74H LCD Panel
Price: $ 137
  • NL6448BC33-74H

Availability:
Quantity:
Here are the detailed parameters of the NL6448BC33 - 74H LCD panel:


  • General Parameters

    • Size: 10.4 inches.

    • Panel Type: a - Si TFT - LCD.

    • Resolution: 640×480.

    • Pixel Format: RGB vertical stripe.

    • Display Area: 211.2×158.4 mm.

    • Outline Size: 243×185.1×11 mm.

    • Panel Weight: 475/500 g (Typ./Max.).

  • Display Performance

    • Brightness: 450 cd/m² (Typ.).

    • Contrast Ratio: 800:1 (Typ.) (TM).

    • Viewing Angle: 88/88/88/88 (Typ.) (CR≥10).

    • Display Colors: 262K, 50% (CIE 1931).

    • Display Mode: SA - SFT, normally black, transmissive.

    • Response Time: 14/16 (Typ.) (Tr/Td) ms.

  • Electrical Characteristics

    • Frequency: 60Hz.

    • Signal Interface: CMOS (1 ch 6 - bit), 31 pins.

    • Input Voltage: 3.3/5.0 V (Typ.).

  • Environmental Parameters

    • Operating Temperature: - 20 - 70 °C.

    • Storage Temperature: - 30 - 80 °C.


Nee Electron Technology Co.,LTD. is very professional touch panel company. We have Capacitor and resistance touch glass factory can accept OEM .Especial in Automation industrial device. We can do all kind of size which you need exactly.

We can open module in small quantity and fast delievery time and very reasonable price when you can’t find any kind of touch glass.

We export a lot of countries. almost got 100% good feedbacks, Because we have super good team to control our products quality at very strict. Also, we have a professional service team to service you after sold out products.

Just contact us :

Skype: chasesweet2

WeChat: chasesweet

Whatsapp/Mobile: +86 13928128361

Email: chasesweet@163.com

NL6448BC33-74H
