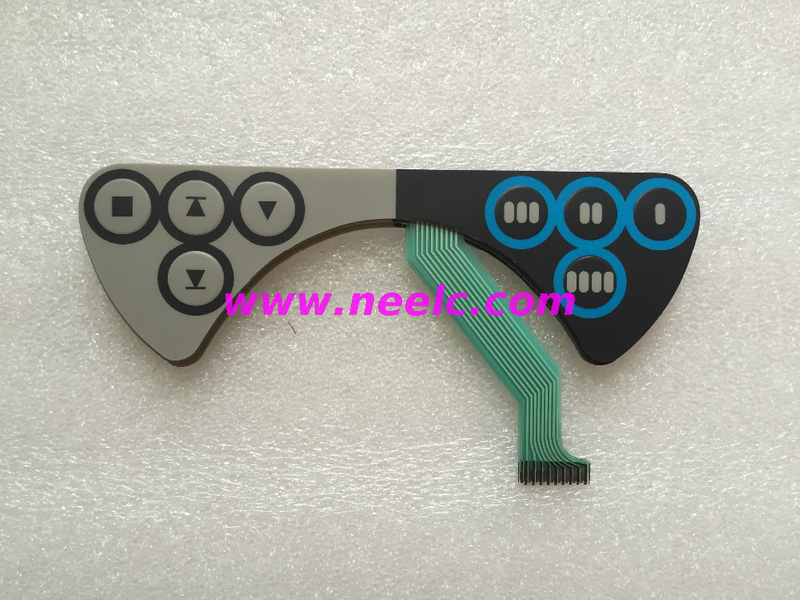

New Keypad 3HAC023195-001

• General Information

• Model: 3HAC023195 - 001.

• Type: Membrane keypad.

• Application: It is used for ABB robot teach pendants, such as the SX TPU 2 16/64 teach pendant, and is an important component for operating and programming robots.

• Physical Characteristics

• Size: There is no specific public information, but it is designed to match the size of the corresponding teach pendant. The overall size is estimated to be about 20 - 30 centimeters in length, 10 - 15 centimeters in width, and 2 - 5 centimeters in thickness. The size of the keypad area is about 10 - 15 centimeters in length and 5 - 10 centimeters in width, with each key having a diameter or side length of about 1 - 2 centimeters.

• Weight: The gross weight is about 1.3 kg.

• Material: The keypad buttons are made of plastic, and the membrane is made of polyester, polycarbonate, or other polymer materials, which have good flexibility, wear resistance, and chemical resistance, and can adapt to harsh industrial environments.

• Electrical Characteristics

• Power Supply: It usually works with the power supply of the ABB robot teach pendant, and there is no independent public power supply parameter. It is inferred that it operates at a low voltage, probably 24V DC or 12V DC.

• Interface: It is connected to the teach pendant through a specific interface, which may be a serial interface or a custom - designed interface to transmit key operation signals.

• Performance Characteristics

• Life Expectancy: The number of key presses can reach more than 1 million times, which has high durability and can meet the needs of long - term use in industrial applications.

• Response Time: The response time is short, usually within a few milliseconds, which can quickly transmit key operation signals to ensure the real - time performance of robot operation.

• Tactile Feedback: The keys have clear tactile feedback, and the operator can clearly feel the key - pressing state, which helps to improve the accuracy and efficiency of operation.
