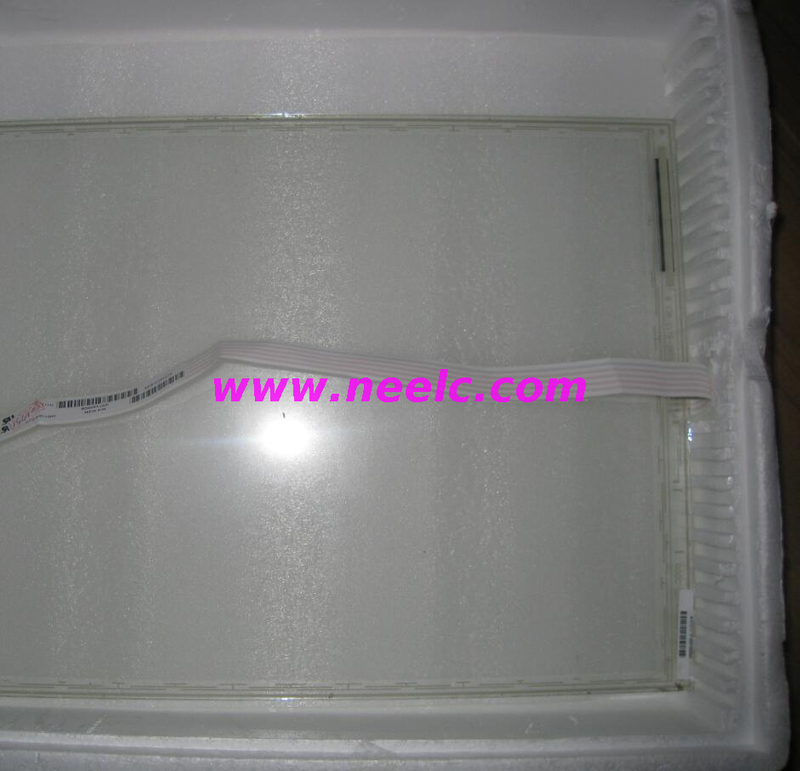

New Touch Screen 5 wires 330x248mm

5 0 Reviews
5 wires 330x248mm
Price: $ 93
  • 5 wires 330x248mm

Availability:
Quantity:
min order: 1
View wholesale prices View wholesale prices
  • Quantity Price
  • 5 $-5
sign in to view wholesale price
1. General Information


  • Touch Technology: As it is a 5-wire touch screen, it is likely a resistive touch screen. Resistive touch screens are known for their durability and accuracy in single-touch applications. They work by detecting the pressure applied to the screen surface.

  • Size: The physical dimensions of the touch screen are 330mm in length and 248mm in width. The aspect ratio can be calculated as approximately 330:248, which simplifies to around 1.33:1 (similar to a 4:3 aspect ratio).


2. Electrical Characteristics


  • Operating Voltage: Resistive touch screens commonly operate at a voltage of 5V DC. However, some models may have a tolerance range around this value, such as 4.5V to 5.5V.

  • Power Consumption: Generally, resistive touch screens have relatively low power consumption. For a touch screen of this size, the power consumption might be in the range of a few hundred milliwatts to about 1 watt, depending on the specific design and the presence of additional features like backlighting (if applicable).


3. Touch Performance


  • Resolution: The touch resolution of a 5-wire resistive touch screen can be quite high, often reaching 4096x4096 points. This allows for precise location detection of the touch input on the screen.

  • Response Time: The response time is an important factor. A typical response time for a resistive touch screen could be within 10 to 20 milliseconds, ensuring that the user's touch is quickly registered and processed.

  • Durability: These touch screens are designed to withstand a large number of touches. They can typically endure millions of touches, making them suitable for applications with frequent use.


4. Optical Properties


  • Light Transmittance: Resistive touch screens usually have a light transmittance of around 75% to 85%. This allows a significant amount of light from the underlying display to pass through, enabling the user to view the screen clearly.

  • Reflectance: The reflectance of the touch screen surface is an important consideration for visibility. A lower reflectance value, such as less than 5%, helps to reduce glare and improve the readability of the screen, especially in bright environments.


5. Physical Properties


  • Thickness: The thickness of the touch screen module can vary. For a resistive touch screen of this size, it might be in the range of 2 to 5 millimeters, including the protective layers and the internal circuitry.

  • Surface Hardness: The surface of the touch screen is likely to have a hardness rating of at least 3H on the Mohs scale to resist scratches and abrasions during normal use.


6. Environmental Specifications


  • Operating Temperature: A typical operating temperature range for a resistive touch screen could be -20°C to 70°C. This range allows the touch screen to function properly in a variety of indoor and some outdoor environments.

  • Storage Temperature: The storage temperature range might be -30°C to 80°C, ensuring that the touch screen can be stored safely in different environmental conditions without damage.


5 wires 330x248mm
