General Information

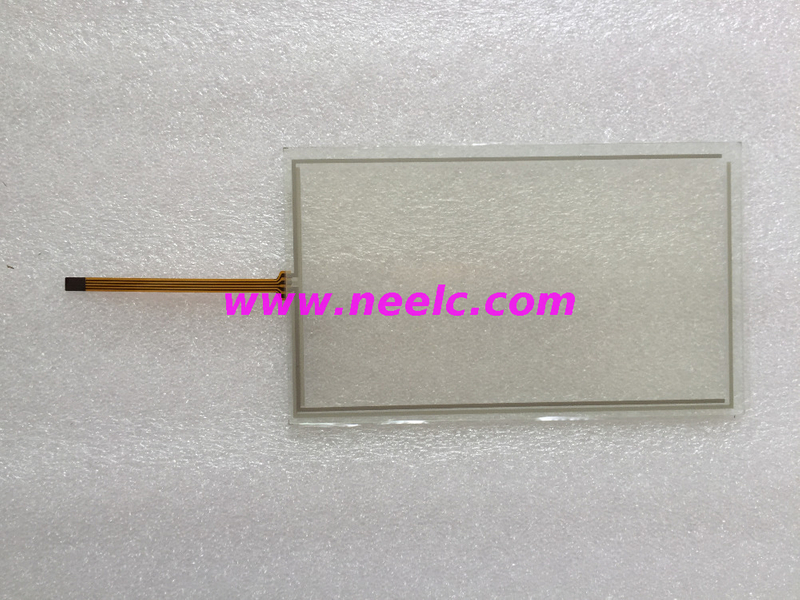

Model: KTP700, with the specific code 6AV2123 - 2GB03 - 0AX02.
Type: It belongs to the SIMATIC HMI basic panel series and is suitable for simple HMI applications5.
Physical Characteristics
Size: The screen is a 7 - inch wide - screen TFT display, and the overall dimensions are approximately 172mm in length and 104mm in height6.
Weight: About 1 - 2kg24.
Electrical Characteristics
Working Voltage: 24V DC5.
Power Consumption: Typically, it is within a certain range, but the specific value needs to be refered to the product manual.
Display Characteristics
Resolution: 800×4807.
Color Depth: 64,000 colors5.
Backlight: It is adjustable and can be dimmed to 0%. The backlight color is blue56.
Interface and Function
Communication Interface: It has 1 Ethernet interface (TCP/IP, PROFINET) or 1 RS 485/422 interface (MPI, PROFIBUS DP; separate version)5.
USB Interface: 1 USB interface, which can be used to connect devices such as keyboards, mice, or barcode scanners, and also supports data archiving to USB flash drives and manual backup and restoration of the entire panel5.
Touch and Keys: It features touch - screen operation and is equipped with 8 tactile function keys5.
Environmental Adaptability
Operating Temperature: Usually, it is - 20 °C to + 60 °C.
Relative Humidity: It can work in the environment of 10% - 90% relative humidity without condensation.
Nee Electron Technology Co.,LTD. is very professional touch panel company. We have Capacitor and resistance touch glass factory can accept OEM .Especial in Automation industrial device. We can do all kind of size which you need exactly.
We can open module in small quantity and fast delievery time and very reasonable price when you can’t find any kind of touch glass.
We export a lot of countries. almost got 100% good feedbacks, Because we have super good team to control our products quality at very strict. Also, we have a professional service team to service you after sold out products.
Just contact us :
Skype: chasesweet2
WeChat: chasesweet
Whatsapp/Mobile: +86 13928128361
Email: chasesweet@163.com
