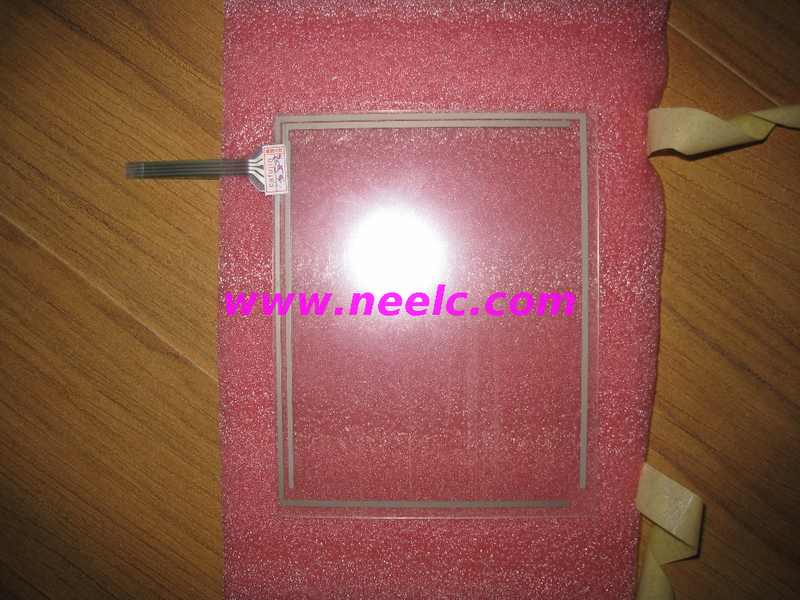

New Touch Screen for ATP-057

Product Name: Replacement Touch Screen for ATP-057

Type: Projected Capacitive (PCAP) Touch Panel

Compatible Model: Designed for ATP-057 display modules

Material & Construction:

• Cover Lens: Chemically strengthened glass (Aluminosilicate, 0.7mm–1.1mm thickness)

• Sensor Layer: ITO (Indium Tin Oxide) film (single/dual-layer options)

• Bonding Method: Optical Clear Adhesive (OCA) or air gap (standard)

Dimensions & Mechanical Specs:

• Screen Size: 5.7 inches (diagonal)

• Active Area: 115.0mm × 86.0mm (exact match for ATP-057)

• Total Thickness: 1.8mm ±0.1mm (including sensor)

• Outline Dimensions: 121.0mm × 94.0mm (mounting holes compatible with ATP-057)

Touch Performance:

• Touch Points: Multi-touch (5/10 points, depends on controller)

• Response Time: ≤6ms

• Operating Voltage: 3.3V DC (standard)

• Interface Options: I²C, USB, SPI (configurable)

Durability & Environmental:

• Surface Hardness: ≥8H (anti-scratch)

• Coating Options:

• Anti-Glare (AG)

• Anti-Fingerprint (AF)

• Oleophobic coating (optional)

• Operating Temperature: -30°C to +80°C

• Storage Temperature: -40°C to +85°C

• Humidity Resistance: 95% RH (non-condensing)

Optical Properties:

• Transmittance: ≥92% (550nm wavelength)

• Haze: ≤0.8% (high clarity)

Compatibility & Integration:

• Controller Support: FT5x06, GT9xx, ILI2511 (customizable)

• OS Compatibility: Windows, Android, Linux, QNX

• IP Rating: IP65/IP67 (optional for rugged use)

Certifications:

• RoHS & REACH compliant

• CE/FCC/UL certifications (available upon request)

Applications:

• Industrial HMIs (replacement for ATP-057 panels)

• Medical devices (touchscreen upgrades)

• Automotive dashboards & kiosks

• Military & aerospace displays

Customization Options:

• Thickness adjustments (0.55mm ultra-thin available)

• Flexible connectors (FPC) with gold-plated contacts

• EMI shielding for high-noise environments
