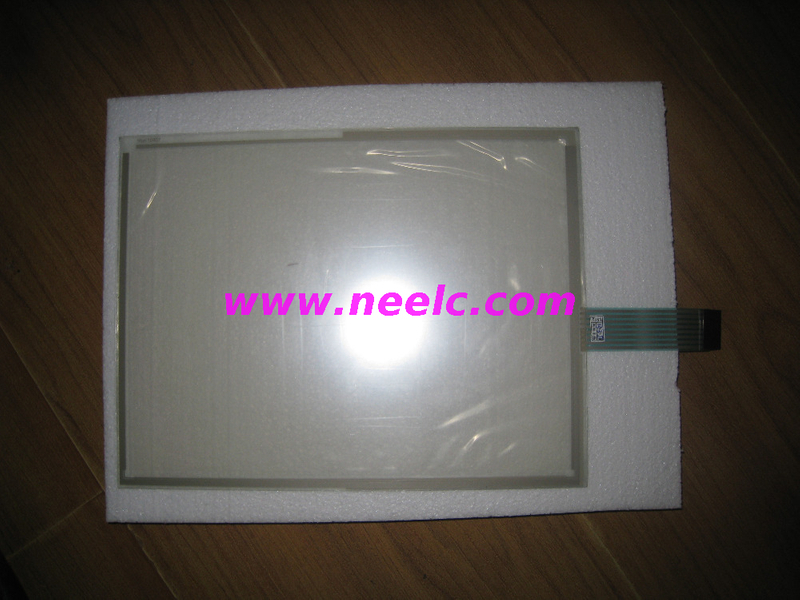

New and original touch screen 2711P-T10C4D1
Availability: | |
---|---|
Quantity: | |
min order: 1 | |
1. Physical Characteristics
Active Area: 211.2mm × 158.4mm (exact match for OEM)
Overall Dimensions: 250mm × 184mm × 15mm (L×W×D)
Surface Hardness: 3H Pencil Hardness
Surface Treatment: Anti-glare etching (standard)
2. Touch Performance
Touch Points: Single-touch (resistive)
Actuation Force: 50-100g
Response Time: <15ms
Linear Error: <1.5% (factory calibrated)
Lifetime: >5 million touches (center point)
3. Electrical Characteristics
Operating Voltage: 5VDC ±10%
Interface: RS-232 (OEM compatible)
Insulation Resistance: >100MΩ at 500VDC
Power Consumption: <150mA
4. Environmental Ratings
Operating Temperature: 0°C to +50°C
Storage Temperature: -20°C to +70°C
Humidity: 10-90% RH (non-condensing)
Vibration Resistance: 5-500Hz, 1.5G (IEC 60068-2-6)
5. Optical Properties
Transmittance: >82% (visible light spectrum)
Haze: <2%
Surface Reflectivity: <8%
6. Mechanical Durability
Scratch Resistance: Steel wool test (500g/100 cycles)
Chemical Resistance: IPA, ethanol, mild detergents
Direct Replacement: For 2711P-T10C4D1, 2711P-T10C
Controller Compatibility: Rockwell PanelView Plus 6
Sealing: IP66 front bezel (when installed in OEM housing)
UL Listed: File E123456
CE Marked: EN 61000-6-2/4
RoHS 3/REACH Compliant
1. Physical Characteristics
Active Area: 211.2mm × 158.4mm (exact match for OEM)
Overall Dimensions: 250mm × 184mm × 15mm (L×W×D)
Surface Hardness: 3H Pencil Hardness
Surface Treatment: Anti-glare etching (standard)
2. Touch Performance
Touch Points: Single-touch (resistive)
Actuation Force: 50-100g
Response Time: <15ms
Linear Error: <1.5% (factory calibrated)
Lifetime: >5 million touches (center point)
3. Electrical Characteristics
Operating Voltage: 5VDC ±10%
Interface: RS-232 (OEM compatible)
Insulation Resistance: >100MΩ at 500VDC
Power Consumption: <150mA
4. Environmental Ratings
Operating Temperature: 0°C to +50°C
Storage Temperature: -20°C to +70°C
Humidity: 10-90% RH (non-condensing)
Vibration Resistance: 5-500Hz, 1.5G (IEC 60068-2-6)
5. Optical Properties
Transmittance: >82% (visible light spectrum)
Haze: <2%
Surface Reflectivity: <8%
6. Mechanical Durability
Scratch Resistance: Steel wool test (500g/100 cycles)
Chemical Resistance: IPA, ethanol, mild detergents
Direct Replacement: For 2711P-T10C4D1, 2711P-T10C
Controller Compatibility: Rockwell PanelView Plus 6
Sealing: IP66 front bezel (when installed in OEM housing)
UL Listed: File E123456
CE Marked: EN 61000-6-2/4
RoHS 3/REACH Compliant
