Display Characteristics
Type: STN color LCD.
Display Colors: 64 colors (3 - speed blink).
Backlight: CCFL, with a service life of 50,000 hours under 24 - hour operation.
Resolution: 640×480 pixels.
Effective Display Area: 211.2mm (width) × 158.4mm (height).
Brightness Control: 4 - level adjustment available via the touch panel.
Contrast Control: 8 - level adjustment available via the touch panel.
Memory
Application Memory: 2MB Flash EPROM.
Data Backup Memory: 128KB SRAM, using a lithium battery.
Touch Panel Resolution: 32×24 keys/screen - 1 or 2 - point touch.
External Interfaces
Serial Interface: Asynchronous transmission, RS - 232C/RS - 422, with a data length of 7 or 8 bits, a stop bit of 1 or 2 bits, and a parity of none, odd, or even. The data transmission speed is 2400 to 115.2 kbps, 187.5 kbps.
CF Card Interface: 1 slot.
Auxiliary Input/Output Interface: Remote reset input: 1 point, with an input voltage of DC24V ± 10%, an input current of 4mA (typical), and a minimum input pulse width of 2ms. The operating voltage is a minimum of DC 21.1V when on and a maximum of DC 3V when off. Isolation method: photocoupler isolation. Output: 3 points (run output: 1 point, system alarm output: 1 point, external buzzer output: 1 point), with a rated voltage of DC 24V and a maximum rated current of 50mA/point.
Printer Interface: Compatible with NEC PC - PR201/PL, Epson ESC/P 24 - J84(C), HP Laser Jet, PCL 4 command, Epson PM/Stylus (6 - color ink), and Epson Stylus (4 - color ink) printers.
General Specifications
Rated Voltage: AC100V - 240V.
Rated Voltage Range: AC85 - 265V.
Power Consumption: 50VA or less (AC input 100V), 85VA or less (AC input 240V).
Ambient Operating Temperature: 0 - 50℃.
Storage Temperature: - 20 - 60℃.
Ambient Humidity: 10 - 90% RH (non - condensing, wet bulb temperature 39℃ or less).
Storage Humidity: 10 - 90% RH (non - condensing, wet bulb temperature 39℃ or less).
External Dimensions: 317mm (width) × 243mm (height) × 58mm (depth).
Weight: 3.5kg (7.7 lb) or less.

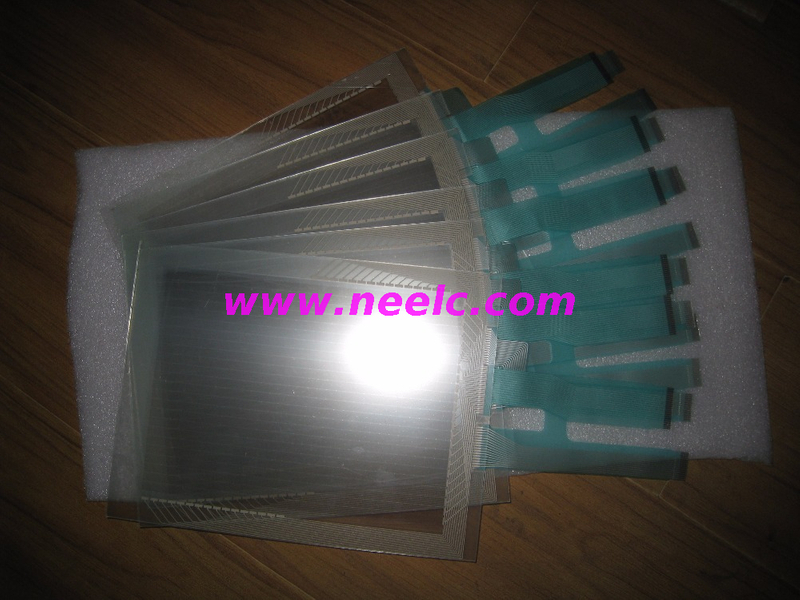

Nee Electron Technology Co.,LTD. is very professional touch panel company. We have Capacitor and resistance touch glass factory can accept OEM .Especial in Automation industrial device. We can do all kind of size which you need exactly.
We can open module in small quantity and fast delievery time and very reasonable price when you can’t find any kind of touch glass.
We export a lot of countries. almost got 100% good feedbacks, Because we have super good team to control our products quality at very strict. Also, we have a professional service team to service you after sold out products.
Just contact us :
Skype: chasesweet2
WeChat: chasesweet
Whatsapp/Mobile: +86 13928128361
Email: chasesweet@163.com
