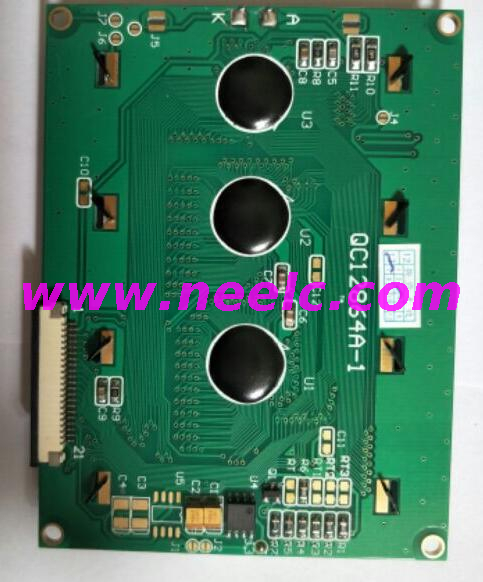

QC12864A-1
Availability: | |
---|---|
Quantity: | |
min order: 1 | |
Resolution: 128×64, which means it has 128 columns and 64 rows of pixels, and can display simple graphics and text.
Dot Size: 0.39mm×0.55mm, with a dot center - to - center distance of 0.44mm×0.60mm.
Viewing Angle: The viewing angle is 6 o'clock direct view, that is, the best viewing angle is when looking directly at the screen from the 6 - o'clock direction.
Driving Method: 1/64 DUTY, 1/9 BIAS. This driving method can ensure the normal display of the LCD panel and save power.
Backlight: Usually uses LED backlight, which has the characteristics of high brightness, low power consumption and long life.
Controller: KS0108 or compatible IC, which is responsible for controlling the display operation of the LCD panel, including receiving data, decoding, and driving the display.
Data Bus: 8 - bit parallel port/6800 mode, which can be connected to the microcontroller or other control devices, and transmit data in parallel to improve the data transmission rate.
Temperature Characteristics: The operating temperature range is - 20°C - + 70°C, and the storage temperature range is - 30°C - + 80°C. It can work stably in a relatively wide temperature range, but it should be noted that the performance of the LCD panel may be affected at extreme temperatures.
Power Supply Voltage: The power supply voltage VDD - VSS is 4.75V - 5.25V, and the typical value is 5.0V. The liquid crystal driving voltage VDD - VADJ changes with temperature. For example, at Ta = 25°C, it is - 10.5V - - 11.5V.
Optical Characteristics: The contrast ratio is 6.0, the viewing angle range is 40° (contrast ratio ≥ 2), and the frame rate is 64Hz. The rise time TR is 120ms, and the fall time TF is 130ms.
Nee Electron Technology Co.,LTD. is very professional touch panel company. We have Capacitor and resistance touch glass factory can accept OEM .Especial in Automation industrial device. We can do all kind of size which you need exactly.
We can open module in small quantity and fast delievery time and very reasonable price when you can’t find any kind of touch glass.
We export a lot of countries. almost got 100% good feedbacks, Because we have super good team to control our products quality at very strict. Also, we have a professional service team to service you after sold out products.
Just contact us :
Skype: chasesweet2
WeChat: chasesweet
Whatsapp/Mobile: +86 13928128361
Email: chasesweet@163.com
