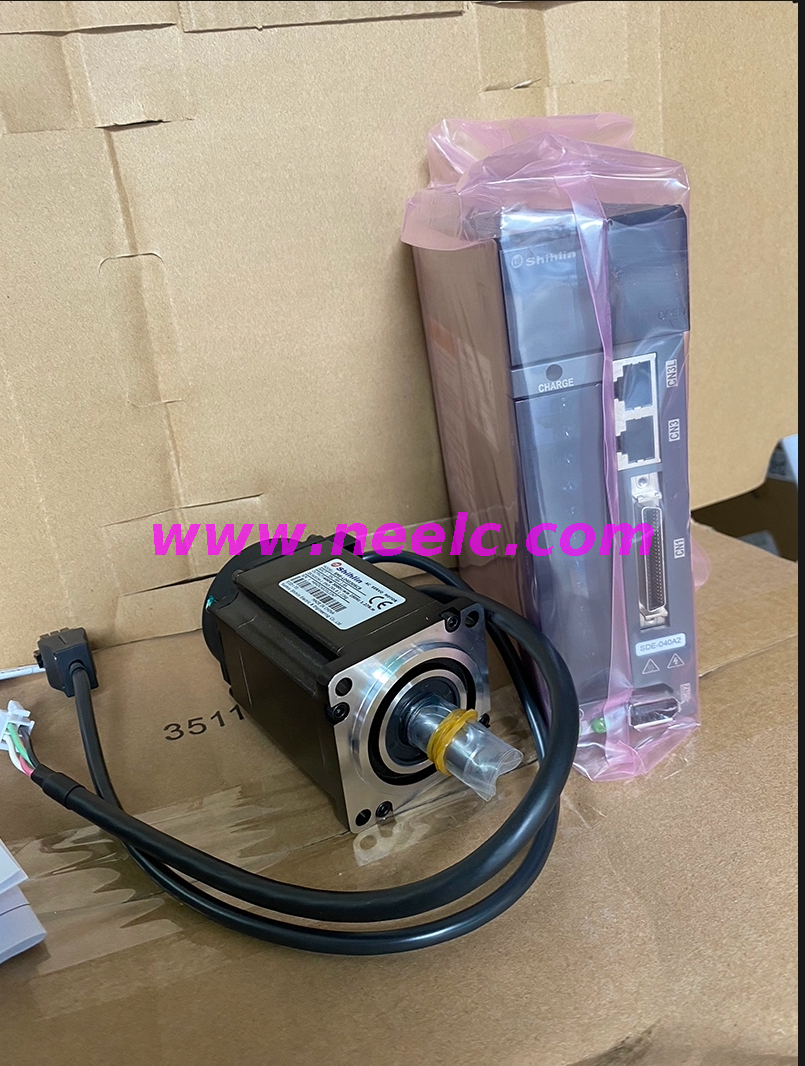

Capacity: 750W
Encoder Resolution: 22 - bit (4,194,304 pulse / rev)
Speed Response: 2 kHz (for - P model)
Control Method: 3 - φ sine wave rectification, IGBT - PWM control (SVPWM drive)
Input Voltage: Single - phase or three - phase 200 - 240 VAC
Permissible Voltage Variation: Single - phase or three - phase 170 - 264 VAC
Power Frequency: 50 / 60 Hz
Permissible Frequency Variation: ±5%
Features: Real - time auto - tuning (one - touch tuning for - P model), absolute position system (optional with battery attached on drive), built - in 64 - points single - axis control function, stable speed and lower torque ripple, cable leading direction / compact size, reduced resonance and vibration, inner register torque command (- P models only). Compliant with CE and UL international standards.
Rated Power1: 750W
Rated Voltage3: 220V
Speed Response Frequency3: 2 kHz
Features3: Supports one - touch tuning function, high - frequency resonance suppression function expanded to 5 groups (3 groups automatic), supports backlash compensation function, supports 3 groups of internal torque commands, DI power input range 12 - 24V, CE - certified.
Capacity: 750W
Encoder Resolution: 22 - bit (4,194,304 pulse / rev)
Speed Response: 2 kHz (for - P model)
Control Method: 3 - φ sine wave rectification, IGBT - PWM control (SVPWM drive)
Input Voltage: Single - phase or three - phase 200 - 240 VAC
Permissible Voltage Variation: Single - phase or three - phase 170 - 264 VAC
Power Frequency: 50 / 60 Hz
Permissible Frequency Variation: ±5%
Features: Real - time auto - tuning (one - touch tuning for - P model), absolute position system (optional with battery attached on drive), built - in 64 - points single - axis control function, stable speed and lower torque ripple, cable leading direction / compact size, reduced resonance and vibration, inner register torque command (- P models only). Compliant with CE and UL international standards.
Rated Power1: 750W
Rated Voltage3: 220V
Speed Response Frequency3: 2 kHz
Features3: Supports one - touch tuning function, high - frequency resonance suppression function expanded to 5 groups (3 groups automatic), supports backlash compensation function, supports 3 groups of internal torque commands, DI power input range 12 - 24V, CE - certified.
