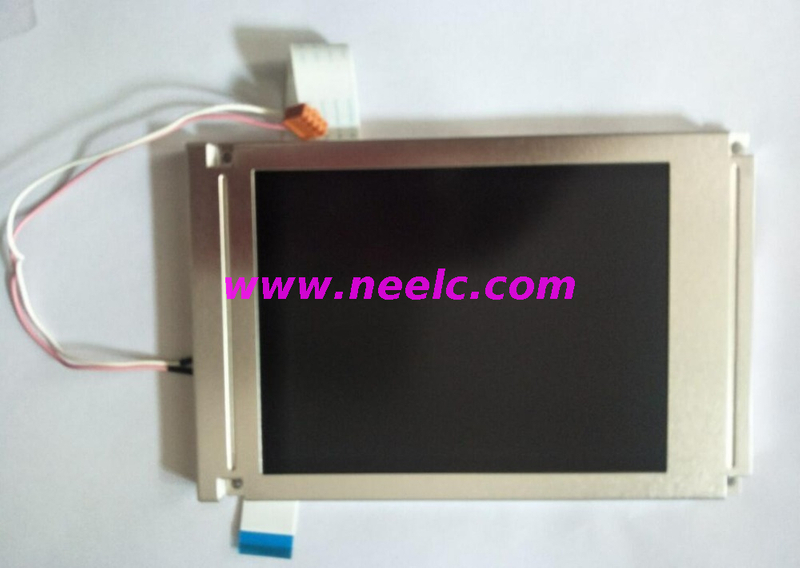

SP14Q001 new and 100% compatible

• Technical Specifications

• Resolution: It has a resolution of 320×240 (QVGA), which is suitable for displaying basic text and simple graphics.

• Display Color: It is a monochrome display, presenting content in a single color, which is suitable for applications where color display is not required.

• Brightness and Contrast: The typical brightness is 80 cd/m², and the contrast ratio is 6:1. These values ensure that the display content is clearly visible under normal indoor lighting conditions.

• Response Time: The response time is 120/150 (Typ.) (tr/td), which means it takes 120 milliseconds for the pixels to turn on and 150 milliseconds to turn off. This speed is sufficient for general industrial application scenarios.

• Viewing Angle: The viewing angle is 40° (Typ.) (CR≥2, φ2 - φ1), and the best viewing direction is at 6 o'clock.

• Physical Characteristics

• Size: The active display area is 115.185×86.385 mm, and the overall size of the panel is 167×109×10 mm, which is compact and suitable for integration into industrial equipment.

• Interface: It adopts a 14 - pin parallel data (4 - bit) interface, FPC, which can be easily connected to the control circuit of industrial equipment.

• Electrical Characteristics

• Power Supply: It requires a supply voltage of 5.0V (Typ.), which is a common low - voltage power supply and is convenient for powering by industrial power supplies.

• Backlight: It uses 1 piece of CCFL as the backlight source. Although CCFL backlights are gradually being replaced by LEDs, they still have the advantage of stable performance in some industrial applications.

Nee Electron Technology Co.,LTD. is very professional touch panel company. We have Capacitor and resistance touch glass factory can accept OEM .Especial in Automation industrial device. We can do all kind of size which you need exactly.

We can open module in small quantity and fast delievery time and very reasonable price when you can’t find any kind of touch glass.

We export a lot of countries. almost got 100% good feedbacks, Because we have super good team to control our products quality at very strict. Also, we have a professional service team to service you after sold out products.
