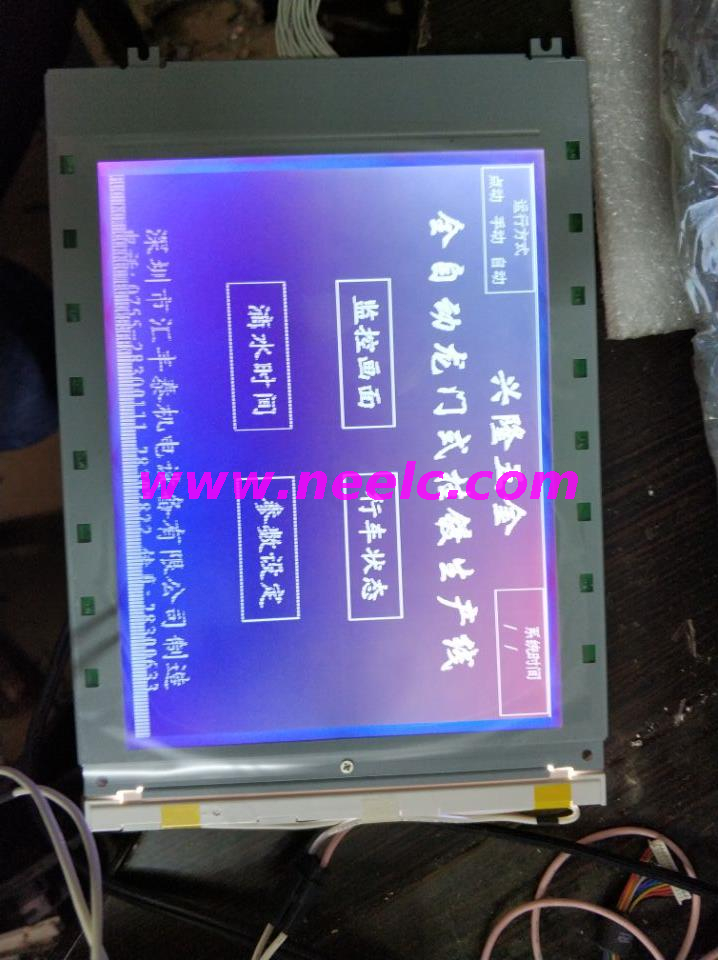

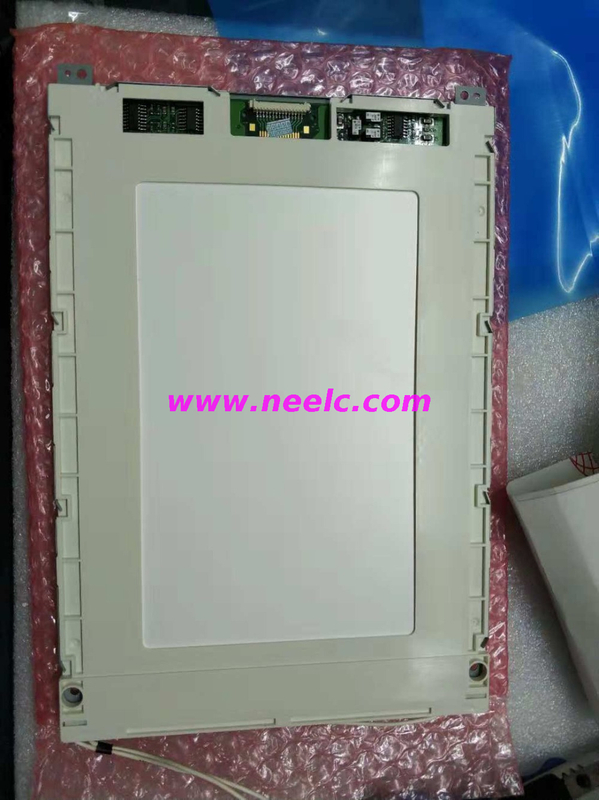

SP24V001 LCD Panel
Availability: | |
---|---|
Quantity: | |
min order: 1 | |
General Information
Panel Brand: Hitachi
Panel Model: SP24V001
Panel Size: 9.4 inches
Panel Type: FSTN - LCD, LCM
Applications: Industrial applications
Resolution and Pixel Parameters
Resolution: 640×480 (VGA)
Pixel Format: Rectangle
Display Area: 191.97 (w) × 143.97 (h) mm
Physical Dimensions
Bezel Opening: 200.0 (w) × 152.0 (h) mm
Outline Size: 257.5 (w) × 174 (h) × 7 (d) mm
Optical Parameters
Surface: Antiglare
Brightness: 110 cd/m² (typ.)
Contrast Ratio: 20:1 (typ.) (tm)
Viewing Angle: 40 (typ.) (cr≥2, φ2 - φ1)
Display Mode: STN, black/white (negative), transmissive
Best View On: 12 o'clock
Response Time: 160/110 (typ.) (tr/td) ms
Display Colors: Monochrome
Electrical Parameters
Lamp Type: 1 pcs CCFL, 50 k hours, without driver
Signal Interface: Parallel data (4 - bit), 15 - pin connector
Input Voltage: 3.3/5.0 V (typ.) (VDD)
Temperature Range
Operating Temperature: 0 - 45 °C
Storage Temperature: - 25 - 60 °C
