TCG121SVLPAANN-AN20 TCG121SVL-21N LCD Panel

5 0 Reviews
TCG121SVLPAANN-AN20 TCG121SVL-21N LCD Panel
Price: $ 147
  • TCG121SVLPAANN-AN20 TCG121SVL-21N LCD Panel

Availability:
Quantity:
min order: 1
View wholesale prices View wholesale prices
  • Quantity Price
  • 5 $-5
sign in to view wholesale price

Product Overview

  • Model: TCG121SVLPAANN-AN20 (TCG121SVL-21N) (Original OEM)

  • Type: TFT-LCD Module

  • Technology: a-Si TFT Active Matrix

  • Backlight: LED (50,000+ Hours Lifetime)

  • Condition: 100% New & Original


Technical Specifications

1. Display Characteristics

  • Screen Size: 12.1-inch (4:3 Aspect Ratio)

  • Resolution: 800 × 600 (SVGA)

  • Active Area: 246mm × 184mm

  • Pixel Pitch: 0.3075mm × 0.3075mm

  • Brightness: 400 cd/m² (Typical)

  • Contrast Ratio: 800:1 (Min.)

  • Viewing Angle: 140° (H) / 130° (V)

  • Color Depth: 262K (6-bit + FRC)

2. Electrical Specifications

  • Interface: LVDS (Single-Channel, 18/24-bit)

  • Operating Voltage: 3.3V (Logic) / 5V (Backlight)

  • Power Consumption: ≤5.5W (Typical, LED Backlight)

  • Connector: 20-Pin FPC (0.5mm Pitch, OEM Standard)

3. Mechanical Specifications

  • Module Dimensions: 280mm × 215mm × 12mm

  • Weight: ~700g

  • Mounting: 4x M3 Screw Holes (OEM-Compatible)

  • Bezel Material: Metal Frame (EMI Shielded)

4. Environmental & Reliability

  • Operating Temperature: -20°C to +70°C

  • Storage Temperature: -30°C to +80°C

  • Humidity Resistance: 90% RH (Non-Condensing)

  • MTBF: 50,000 Hours (at 25°C)

5. Compatibility

  • Replaces: TCG121SVL Series Models

  • Used In:

    • Industrial HMIs (Siemens, Allen-Bradley)

    • Medical Equipment

    • Test & Measurement Devices


Nee Electron Technology Co.,LTD. is very professional touch panel company. We have Capacitor and resistance touch glass factory can accept OEM .Especial in Automation industrial device. We can do all kind of size which you need exactly.

We can open module in small quantity and fast delievery time and very reasonable price when you can’t find any kind of touch glass.

We export a lot of countries. almost got 100% good feedbacks, Because we have super good team to control our products quality at very strict. Also, we have a professional service team to service you after sold out products.

Just contact us :

Skype: chasesweet2

WeChat: chasesweet

Whatsapp/Mobile: +86 13928128361

Email: chasesweet@163.com

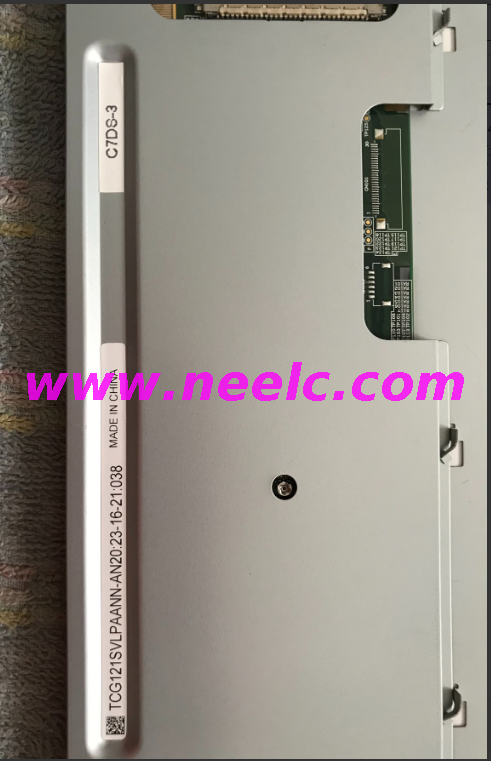

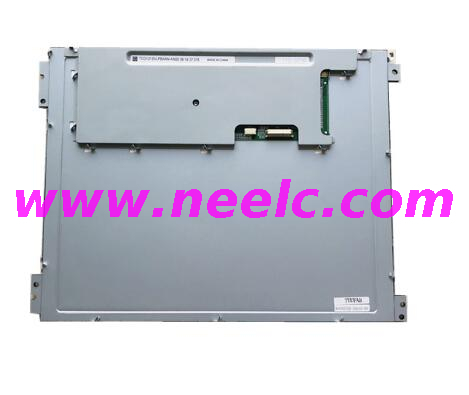

TCG121SVLPAANN-A N20 TCG121SVL-21N LCD Panel

TCG121S VLPAANN-A N20 TCG121SVL-21N LCD PanelTC G121SVLPAANN-AN20 TCG121SVL-21N LCD PanelTCG121SVLPAANN-AN20 TCG121SVL-21N LCD Panel
