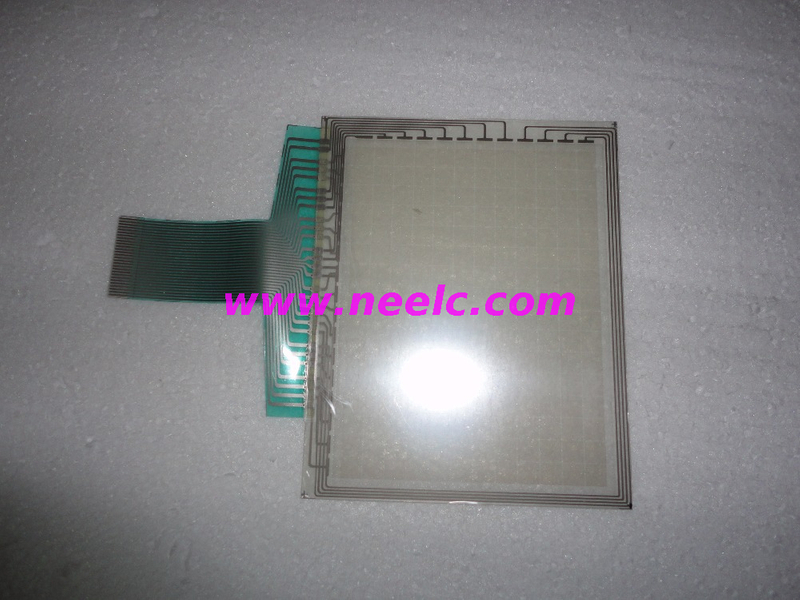

V710C10-038
Availability: | |
---|---|
Quantity: | |
min order: 1 | |
Model Number: V710C10-038 (Direct OEM Replacement)
Type: Projected Capacitive Touch Glass (PCAP)
Technology: Glass-on-Glass (GG) Construction
Compatibility: Industrial HMI and Medical Displays
1. Physical Characteristics
Screen Size: 7.0-inch (16:9 Aspect Ratio)
Active Area: 154.0mm × 86.0mm (Exact OEM Dimensions)
Total Thickness: 1.8mm ±0.1mm (Tempered Glass)
Cover Glass Material: Chemically Strengthened Aluminosilicate
Surface Hardness: ≥9H (Mohs Scale)
2. Touch Performance
Touch Points: 10-Point Multi-Touch
Response Time: ≤4ms
Report Rate: 120Hz
Accuracy: ±1mm
Operating Voltage: 3.3V DC ±5%
3. Optical Properties
Light Transmittance: ≥92% (550nm wavelength)
Haze: ≤0.5%
Surface Treatments Available:
Anti-Glare (AG)
Anti-Fingerprint (AF)
Anti-Reflective (AR)
4. Durability Features
Operating Temperature: -30°C to +80°C
Storage Temperature: -40°C to +85°C
Humidity Resistance: 95% RH (non-condensing)
Impact Resistance: 1.5mm steel ball @ 50cm drop test passed
5. Electrical Specifications
Interface: I²C (Standard), USB Optional
Controller IC: FT5336 or GT911 (Pre-Configured)
ESD Protection: ±15kV (Air Discharge)
6. Mechanical Specifications
Connector Type: 20-Pin FPC (0.5mm Pitch)
Mounting Method: Adhesive or Mechanical Frame
Model Number: V710C10-038 (Direct OEM Replacement)
Type: Projected Capacitive Touch Glass (PCAP)
Technology: Glass-on-Glass (GG) Construction
Compatibility: Industrial HMI and Medical Displays
1. Physical Characteristics
Screen Size: 7.0-inch (16:9 Aspect Ratio)
Active Area: 154.0mm × 86.0mm (Exact OEM Dimensions)
Total Thickness: 1.8mm ±0.1mm (Tempered Glass)
Cover Glass Material: Chemically Strengthened Aluminosilicate
Surface Hardness: ≥9H (Mohs Scale)
2. Touch Performance
Touch Points: 10-Point Multi-Touch
Response Time: ≤4ms
Report Rate: 120Hz
Accuracy: ±1mm
Operating Voltage: 3.3V DC ±5%
3. Optical Properties
Light Transmittance: ≥92% (550nm wavelength)
Haze: ≤0.5%
Surface Treatments Available:
Anti-Glare (AG)
Anti-Fingerprint (AF)
Anti-Reflective (AR)
4. Durability Features
Operating Temperature: -30°C to +80°C
Storage Temperature: -40°C to +85°C
Humidity Resistance: 95% RH (non-condensing)
Impact Resistance: 1.5mm steel ball @ 50cm drop test passed
5. Electrical Specifications
Interface: I²C (Standard), USB Optional
Controller IC: FT5336 or GT911 (Pre-Configured)
ESD Protection: ±15kV (Air Discharge)
6. Mechanical Specifications
Connector Type: 20-Pin FPC (0.5mm Pitch)
Mounting Method: Adhesive or Mechanical Frame
