General Information

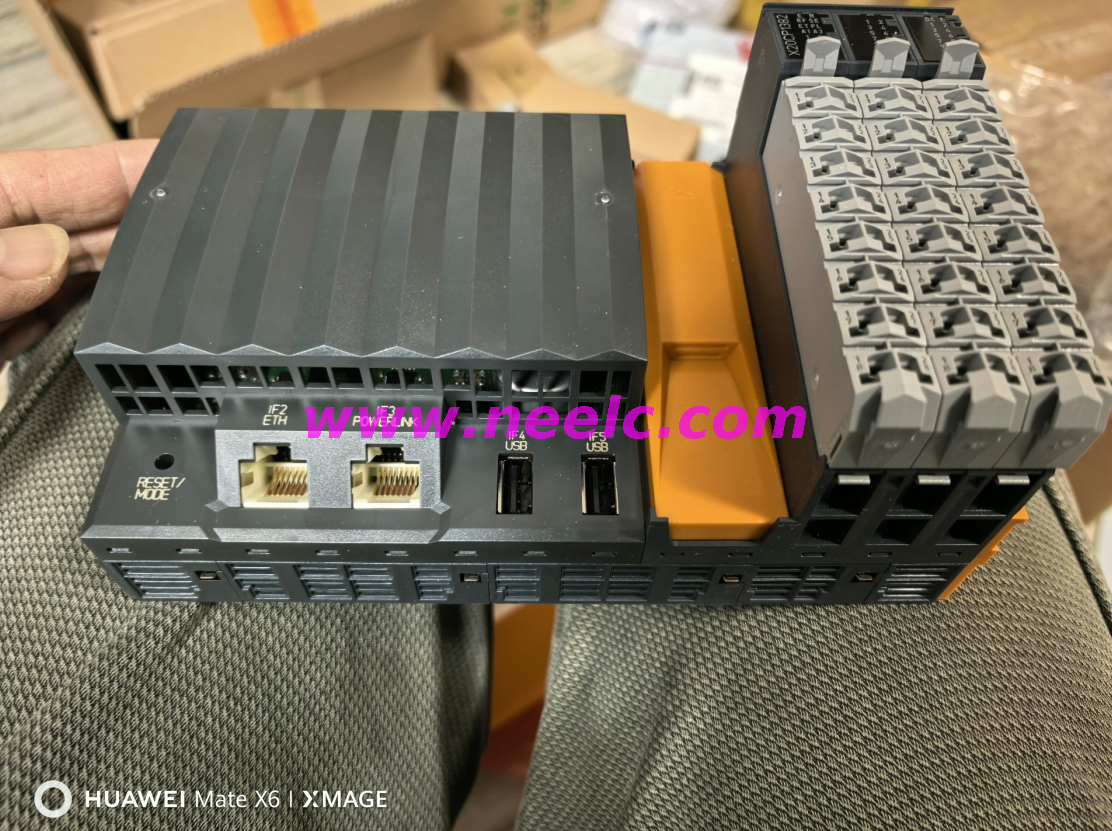

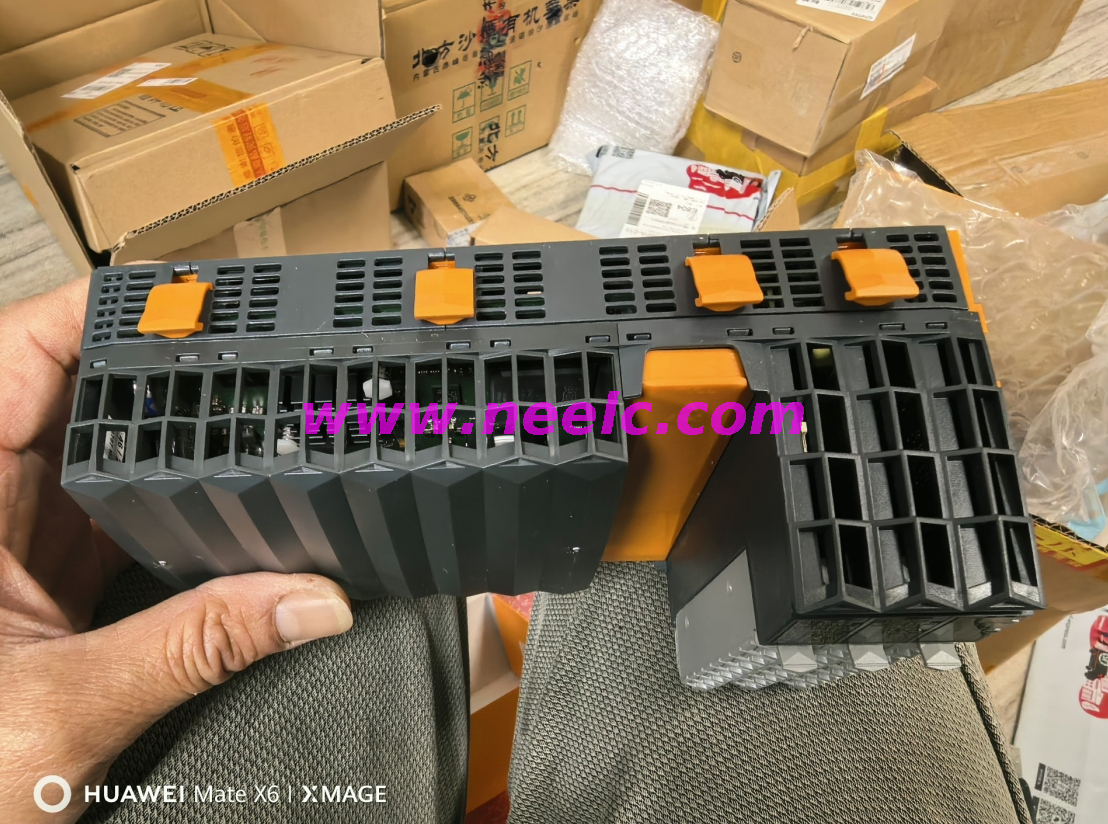

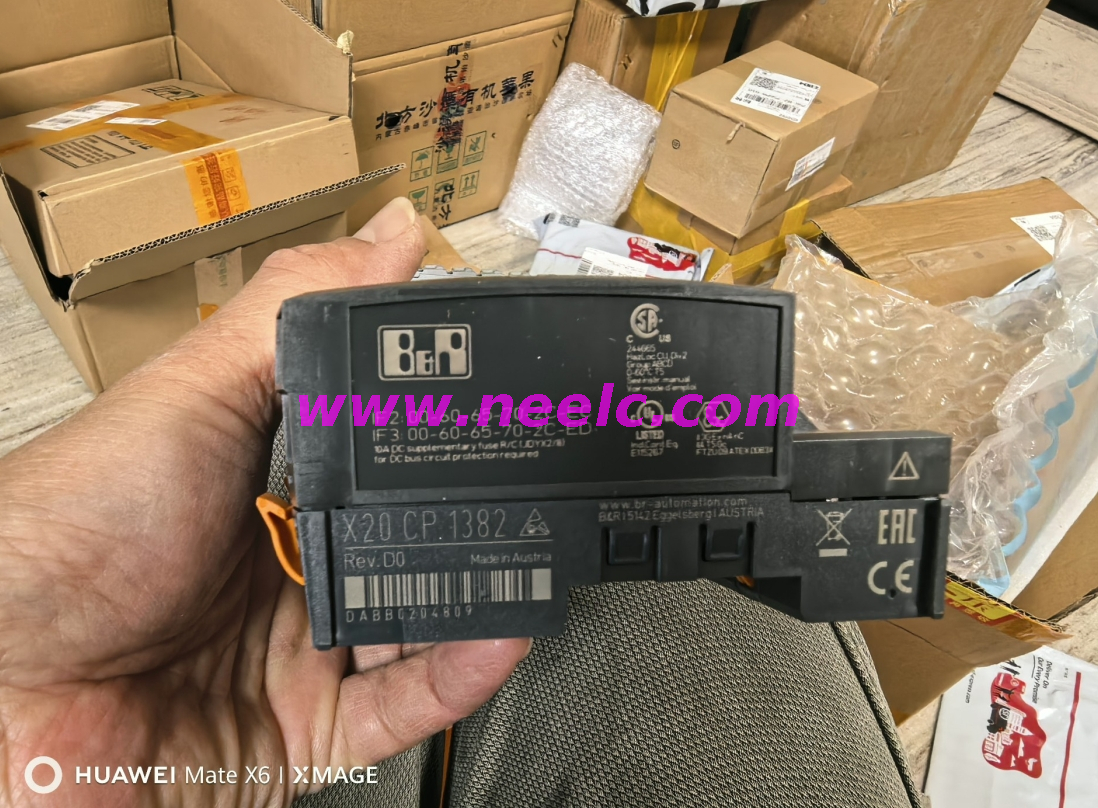

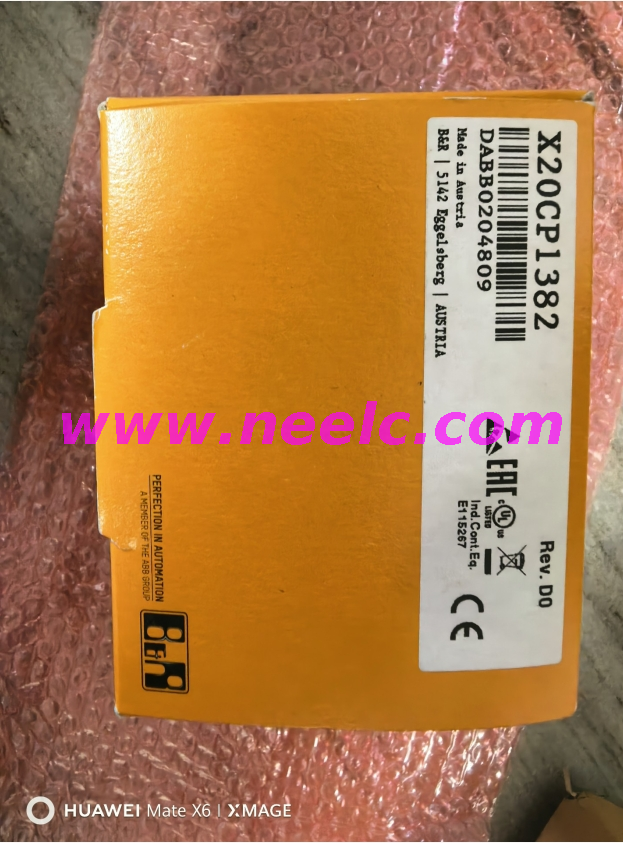

Model: X20CP1382
Type: CPU module of X20 series
Processor: Intel x86 400 MHz compatible with integrated I/O processor
Memory
DDR3 SDRAM: 256 MB
Flash Drive: 2 GB onboard
FRAM: 32 KB for storing remanent variables
Interfaces
Ethernet: 1x RJ45 shielded, 10/100 Mbit/s, supports auto - negotiation and auto - MDI/MDIX
POWERLINK: 1x RJ45 shielded, 100 Mbit/s, supports poll - response chaining
RS232: 1x, through 16 - pin terminal block X20TB1F, maximum transmission rate 115.2 kbit/s
USB: 2x, type A, one with a maximum output current of 0.5A and the other with 0.1A
X2X Link: 1x, master station
CAN Bus: 1x, through 16 - pin terminal block X20TB1F, maximum transmission rate 1 Mbit/s, with integrated terminal resistor
I/O Characteristics
Digital Inputs: 14 standard inputs, 4 high - speed inputs, and 4 mixed - use channels that can be configured as inputs or outputs via software. The nominal voltage is 24 VDC, and the input voltage range is 24 VDC - 15% / + 20%.
Digital Outputs: 4 standard outputs, 4 high - speed outputs, and 4 mixed - use channels that can be configured as inputs or outputs via software. The nominal voltage is 24 VDC, and the nominal output current is 0.5 A for standard outputs and 0.2 A for high - speed outputs.
Analog Inputs: 2 channels, which can be connected to input ± 10 V or 0 - 20 mA/4 - 20 mA through different terminals. The input type is differential input, and the resolution of the digital converter is 12 - bit for voltage and current.
Temperature Input: 1 channel for Pt1000 resistance temperature measurement, 2 - wire connection, 13 - bit digital converter resolution.
Power Supply
Input Voltage: 24 VDC - 15% / + 20%
Nominal Output Voltage: 24 VDC
Nominal Output Power: 2 W
Environmental Parameters
DNV Temperature: B (0 - 55°C)
Humidity: B (up to 100%)
Vibration: B (4 g)
In addition, the module has dimensions of 164mm×99mm×75mm and a weight of approximately 0.2 kg4. It is designed for DIN - rail mounting and has status indicators for CPU function, Ethernet, POWERLINK, RS232, CAN bus, PLC power, I/O power, and I/O function of each channel
General Information
Model: X20CP1382
Type: CPU module of X20 series
Processor: Intel x86 400 MHz compatible with integrated I/O processor
Memory
DDR3 SDRAM: 256 MB
Flash Drive: 2 GB onboard
FRAM: 32 KB for storing remanent variables
Interfaces
Ethernet: 1x RJ45 shielded, 10/100 Mbit/s, supports auto - negotiation and auto - MDI/MDIX
POWERLINK: 1x RJ45 shielded, 100 Mbit/s, supports poll - response chaining
RS232: 1x, through 16 - pin terminal block X20TB1F, maximum transmission rate 115.2 kbit/s
USB: 2x, type A, one with a maximum output current of 0.5A and the other with 0.1A
X2X Link: 1x, master station
CAN Bus: 1x, through 16 - pin terminal block X20TB1F, maximum transmission rate 1 Mbit/s, with integrated terminal resistor
I/O Characteristics
Digital Inputs: 14 standard inputs, 4 high - speed inputs, and 4 mixed - use channels that can be configured as inputs or outputs via software. The nominal voltage is 24 VDC, and the input voltage range is 24 VDC - 15% / + 20%.
Digital Outputs: 4 standard outputs, 4 high - speed outputs, and 4 mixed - use channels that can be configured as inputs or outputs via software. The nominal voltage is 24 VDC, and the nominal output current is 0.5 A for standard outputs and 0.2 A for high - speed outputs.
Analog Inputs: 2 channels, which can be connected to input ± 10 V or 0 - 20 mA/4 - 20 mA through different terminals. The input type is differential input, and the resolution of the digital converter is 12 - bit for voltage and current.
Temperature Input: 1 channel for Pt1000 resistance temperature measurement, 2 - wire connection, 13 - bit digital converter resolution.
Power Supply
Input Voltage: 24 VDC - 15% / + 20%
Nominal Output Voltage: 24 VDC
Nominal Output Power: 2 W
Environmental Parameters
DNV Temperature: B (0 - 55°C)
Humidity: B (up to 100%)
Vibration: B (4 g)
In addition, the module has dimensions of 164mm×99mm×75mm and a weight of approximately 0.2 kg4. It is designed for DIN - rail mounting and has status indicators for CPU function, Ethernet, POWERLINK, RS232, CAN bus, PLC power, I/O power, and I/O function of each channel
