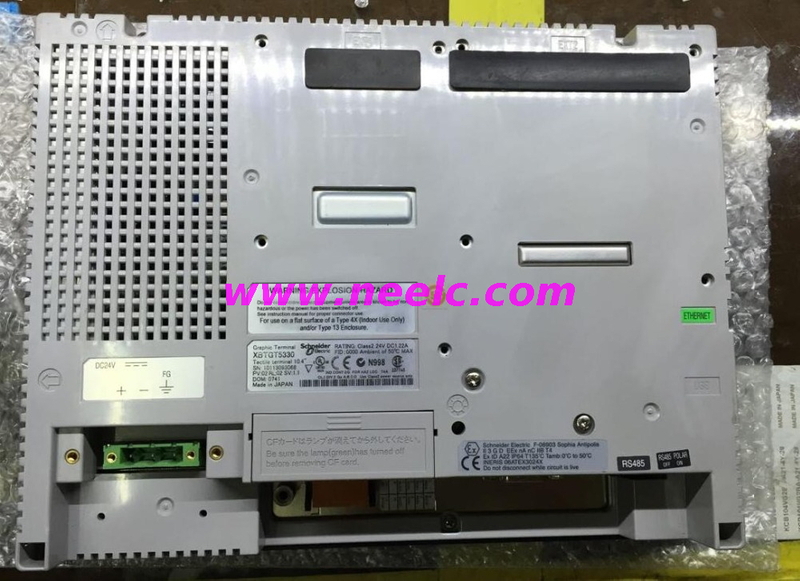

XBTGT 5330 10.4" Colour touch panel ( HMI ) Used in very good condition

5 0 Reviews
XBTGT 5330 10.4" Colour touch panel ( HMI ) Used in very good condition
Price: $ 699
  • XBTGT 5330 10.4" Colour touch panel ( HMI )

Availability:
Quantity:
min order: 1
View wholesale prices View wholesale prices
  • Quantity Price
  • 5 $-5
sign in to view wholesale price
1. General Information


  • Model: XBTGT 5330, which is part of the Schneider Electric Magelis HMI product line. This makes it a reliable option for industrial control and monitoring applications due to Schneider's reputation in the automation field.

  • Type: Human Machine Interface (HMI) with a touch screen, allowing for user interaction with industrial systems.

  • Screen Size: It features a 10.4-inch display, providing a relatively large visual area for displaying process information, graphics, and control interfaces.


2. Display Characteristics


  • Color Display: As a color touch panel, it can present a wide range of colors. This is beneficial for differentiating various elements on the screen, such as indicating different statuses (e.g., green for normal operation, red for alarms) or for displaying detailed graphical representations of industrial processes.

  • Resolution: Although not specified in the initial description, typical 10.4-inch industrial HMIs may have a resolution like 640 x 480 pixels or 800 x 600 pixels. This resolution ensures a reasonable level of detail for displaying text, icons, and simple graphics.

  • Backlight: The backlight is an important component for ensuring visibility. In a used but very good condition unit, the backlight should still provide sufficient brightness and have a reasonable lifespan remaining. It may use LED backlighting, which is energy-efficient and has a longer lifespan compared to some older technologies.


3. Touch Technology


  • Touch Screen: The touch screen on the XBTGT 5330 likely uses resistive or capacitive touch technology. Resistive touch screens are known for their durability and ability to be operated with a gloved hand or a stylus, which is useful in industrial environments. Capacitive touch screens, on the other hand, offer a more responsive and smooth touch experience and may support multi-touch gestures.

  • Touch Sensitivity: In a well-maintained used unit, the touch sensitivity should still be accurate, allowing users to easily interact with the interface and select options without excessive force or misinterpretation of touch inputs.


4. Connectivity and Communication


  • Interfaces: It is likely to have various communication interfaces such as Ethernet, RS-485, and RS-232. Ethernet enables high-speed data transfer and integration with industrial networks, while RS-485 and RS-232 are useful for connecting to other devices like programmable logic controllers (PLCs), sensors, and actuators.

  • Communication Protocols: It may support common industrial communication protocols such as Modbus, Profibus, or Ethernet/IP. These protocols allow for seamless communication and data exchange between the HMI and other devices in the industrial automation system.


5. Software Compatibility


  • Programming Software: The XBTGT 5330 is typically programmed using Schneider Electric's Vijeo Designer software. This software provides a comprehensive environment for creating custom HMI interfaces, designing graphics, configuring communication settings, and implementing control logic.

  • Compatibility with Systems: It is designed to work with a wide range of industrial systems, including Schneider Electric PLCs and other third-party devices that support the relevant communication protocols.


6. Physical and Environmental Specifications


  • Physical Dimensions: The physical dimensions of the panel are designed to fit standard industrial enclosures and panels. It has a compact and rugged design suitable for installation in industrial environments.

  • Operating Temperature: It is likely to be rated for an operating temperature range, typically between 0°C and 50°C, which allows it to function in a variety of industrial settings.

  • Humidity Resistance: It can withstand a certain level of humidity, usually in the range of 10% - 90% non-condensing, ensuring reliable operation in different climatic conditions.


7. Condition Assessment


  • Since it is described as being in very good used condition, the panel should have minimal visible wear and tear. The touch screen should be free of significant scratches or damage that could affect its functionality. The display should be clear and free of dead pixels or other visual defects. All the communication interfaces and buttons (if any) should be in working order.


XBTGT 5330 10.4 Colour touch panel ( HMI ) Used in very good condition
