PRODUCT DETAIL

new and original touch screen UG221H-LR4 new and original touch screen UG221H-LR4

loading

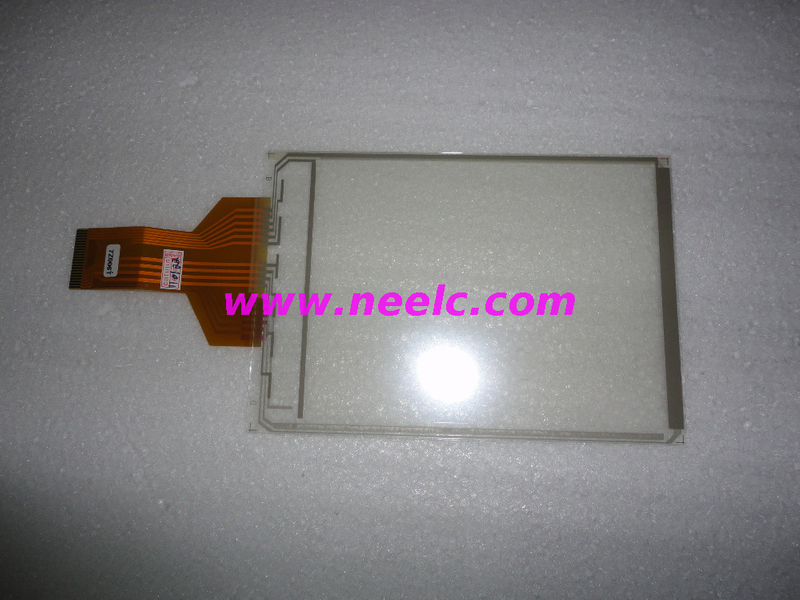

new and original touch screen UG221H-LR4

5 0 Reviews
new and original touch screen UG221H-LR4
Price: $ 60.75
  • new and original touch screen UG221H-LR4

Availability:
Quantity:
min order: 1
View wholesale prices View wholesale prices
  • Quantity Price
  • 5 $-5
sign in to view wholesale price

Product Overview

  • Model: UG221H-LR4 (Direct OEM Replacement)

  • Type: Projected Capacitive (PCAP) Touch Panel

  • Technology: Glass-on-Glass (GG) with ITO Coating

  • Compatibility: Exact fit for UG221H-LR4 industrial displays


Technical Specifications

1. Physical Characteristics

  • Screen Size: 21.5-inch (16:9 Aspect Ratio)

  • Active Area: 476.6mm × 268.3mm (Exact OEM Match)

  • Thickness: 2.8mm ±0.2mm (Tempered Glass)

  • Surface Material: Chemically Strengthened Aluminosilicate Glass

  • Border: Black/White Silk-Screen Printing (OEM-Matched)

2. Touch Performance

  • Touch Points: 10-Point Multi-Touch

  • Response Time: ≤4ms

  • Report Rate: 120Hz

  • Accuracy: ±1mm

  • Operating Voltage: 3.3V DC

3. Durability & Environmental

  • Surface Hardness: ≥9H (Pencil Hardness)

  • Operating Temp: -20°C to +70°C

  • Humidity Resistance: 90% RH (Non-Condensing)

  • Impact Resistance: 1.5mm Steel Ball @ 50cm Drop Test Passed

4. Optical Properties

  • Transmittance: ≥92% (550nm Wavelength)

  • Anti-Glare (AG) / Anti-Fingerprint (AF): Optional Coatings

  • Haze: ≤0.5%

5. Interface & Compatibility

  • Controller: FT5x06 / GT911 (Pre-Configured)

  • Connector: 40-Pin FPC (ZIF, 0.5mm Pitch)

  • OS Support: Windows 10/11, Linux, Android, QNX

6. Certifications

  • RoHS / REACH Compliant

  • CE / FCC EMC Certified

  • IP65 (Optional)



Nee Electron Technology Co.,LTD. is very professional touch panel company. We have Capacitor and resistance touch glass factory can accept OEM .Especial in Automation industrial device. We can do all kind of size which you need exactly.

We can open module in small quantity and fast delievery time and very reasonable price when you can’t find any kind of touch glass.

We export a lot of countries. almost got 100% good feedbacks, Because we have super good team to control our products quality at very strict. Also, we have a professional service team to service you after sold out products.

Just contact us :

Skype: chasesweet2

WeChat: chasesweet

Whatsapp/Mobile: +86 13928128361

Email: chasesweet@163.com

new and original touch screen UG221H-LR4
