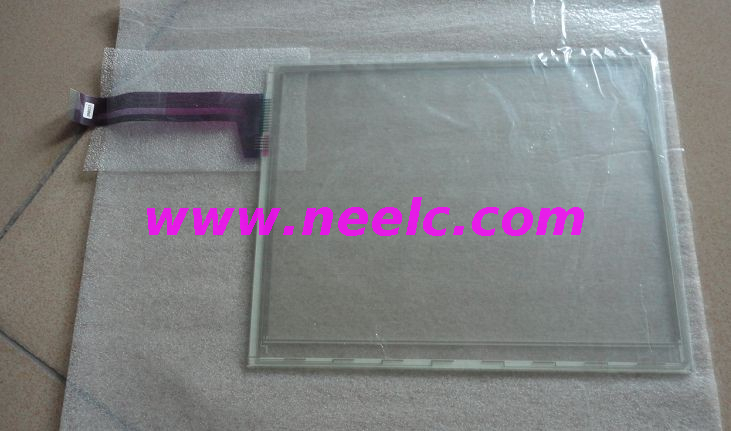

1. General Information
The UG530H - VS1 belongs to the Fuji UG series and is applied in Human - Machine Interface (HMI) scenarios. The size of the display screen is between 12.1 inches and 15 inches, and the resolution is 800×600 pixels.
2. Electrical Characteristics
This touch screen requires a power supply of either 24 VDC (Direct Current) or 100 - 240 VAC (Alternating Current). The resistance value range of the touch screen monitor is as follows: the resistance of the x-axis is between 300 ohms and 900 ohms, and the resistance of the y-axis is between 200 ohms and 800 ohms (The specific values may vary depending on different sizes).
3. Touch Performance
As a resistive touch screen, it has a relatively high touch resolution, which can typically reach 4096×4096 points, enabling accurate detection of touch positions. It can withstand more than 1 million touch operations, showing good durability. The response time is short, generally less than 20 milliseconds.
4. Optical Properties
The light transmittance is generally between 75% and 85%, allowing users to clearly view the content on the screen. The reflectance is low, usually less than 5%, which helps to reduce glare and improve the readability of the screen under different lighting conditions.
5. Environmental Specifications
The operating temperature range is from - 10°C to 60°C, and the storage temperature range is also from - 10°C to 60°C. This enables the touch screen to operate normally in a variety of indoor environments.
6. Warranty Information
Under normal circumstances, this touch screen comes with a 1-year warranty period. However, the warranty period provided by some suppliers may be different, such as 60 days or 365 days.
