PRODUCT DETAIL

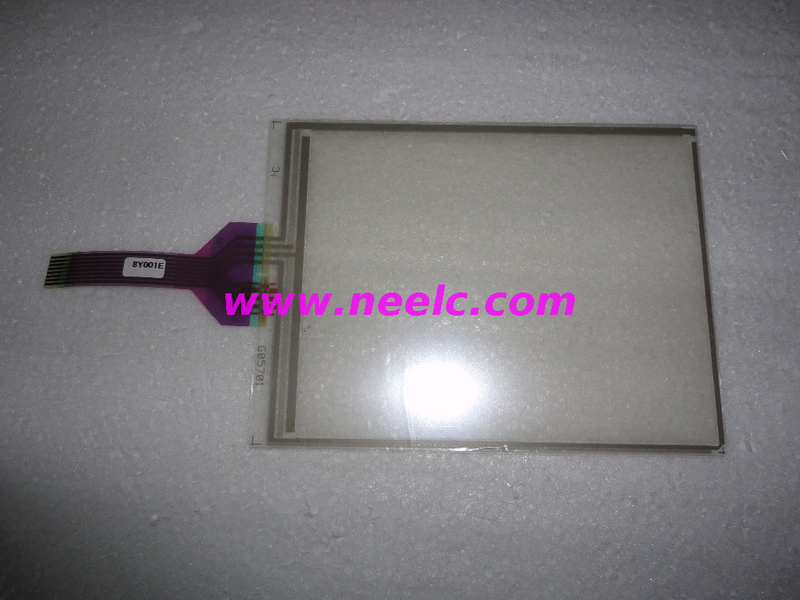

 new and original touch screen for 4PP045.0571-K12  new and original touch screen for 4PP045.0571-K12

loading

new and original touch screen for 4PP045.0571-K12

5 0 Reviews
new and original touch screen for 4PP045.0571-K12
Price: $ 72
  • 4PP045.0571-K12

Availability:
Quantity:
min order: 1
View wholesale prices View wholesale prices
  • Quantity Price
  • 5 $-5
sign in to view wholesale price

Product Overview

  • OEM Part No.: 4PP045.0571-K12 (Genuine Replacement)

  • Type: Projected Capacitive (PCAP) Touch Panel

  • Technology: Glass-on-Glass (GG) with ITO Coating

  • Compatibility: Designed for Siemens/HMI/Industrial Displays (Verify exact model)


Technical Specifications

1. Physical Characteristics

  • Screen Size: 5.7-inch (4:3 Aspect Ratio)

  • Active Area: 115mm × 86mm (Exact OEM Match)

  • Thickness: 1.8mm ±0.1mm (Tempered Glass)

  • Surface Material: Chemically Strengthened Aluminosilicate Glass

  • Border: Black/White Silk-Screen Printing (OEM-Matched)

2. Touch Performance

  • Touch Points: 10-Point Multi-Touch

  • Response Time: ≤5ms

  • Report Rate: 120Hz

  • Accuracy: ±1mm

  • Operating Voltage: 3.3V DC

3. Durability & Environmental

  • Surface Hardness: ≥9H (Pencil Hardness)

  • Operating Temp: -20°C to +70°C

  • Humidity Resistance: 90% RH (Non-Condensing)

  • Impact Resistance: 1.5mm Steel Ball @ 50cm Drop Test Passed

4. Optical Properties

  • Transmittance: ≥92% (550nm Wavelength)

  • Anti-Glare (AG) / Anti-Fingerprint (AF): Optional Coatings

  • Haze: ≤0.5%

5. Interface & Compatibility

  • Controller: FT5x06 / GT911 (Pre-Configured)

  • Connector: 20-Pin FPC (ZIF, 0.5mm Pitch)

  • OS Support: Windows, Linux, Android, QNX

6. Certifications

  • RoHS / REACH Compliant

  • CE / FCC EMC Certified

  • IP65 (Optional)


4PP045.0571-K12
